ESD3V3U4ULCE6327XTSA1

Obsolete

Infineon Technologies

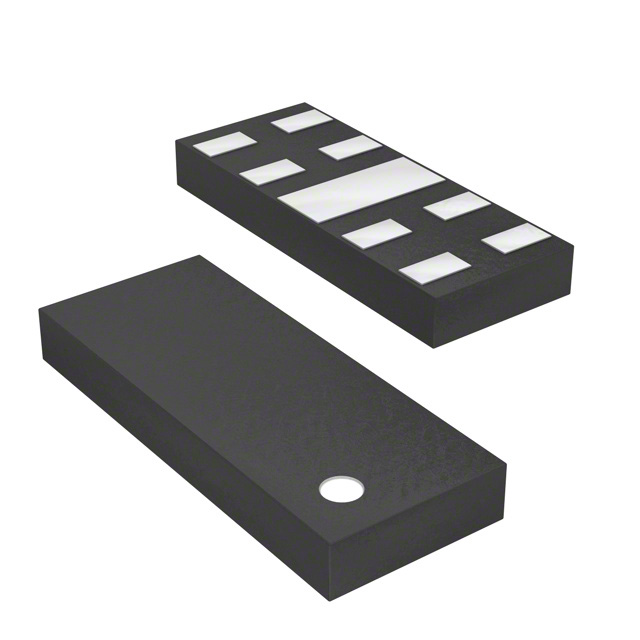

TVS DIODE 3.3VWM 11VC TSLP-9-1

Search across all available documentation for this part.

Obsolete

Infineon Technologies

TVS DIODE 3.3VWM 11VC TSLP-9-1

Technical Specifications

Parameters and characteristics for this part

Specification	ESD3V3U4ULCE6327XTSA1

Applications	HDMI, Ethernet
Capacitance @ Frequency	0.4 pF
Current - Peak Pulse (10/1000µs)	3 A
Mounting Type	Surface Mount
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	9-XFDFN
Power Line Protection	False
Supplier Device Package	PG-TSLP-9-1
Type	Zener
Unidirectional Channels [custom]	4
Voltage - Clamping (Max) @ Ipp	11 V
Voltage - Reverse Standoff (Typ)	3.3 V

Part	Mounting Type	Supplier Device Package	Capacitance @ Frequency	Voltage - Breakdown (Min) [Min]	Package / Case	Package / Case	Unidirectional Channels [custom]	Voltage - Reverse Standoff (Typ)	Current - Peak Pulse (10/1000µs)	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Clamping (Max) @ Ipp	Type	Applications	Voltage - Breakdown (Min)	Bidirectional Channels [custom]
Infineon Technologies ESD3V3U1U-02LS E6327	Surface Mount	PG-TSSLP-2-1	0.4 pF	5 V	0603 Metric	0201	1	3.3 V	3 A	125 ¯C	-55 °C	28 V	Zener	Ethernet HDMI
Infineon Technologies ESD3V3XU1USE6327XTSA1	Surface Mount	PG-TSSLP-2-1	0.4 pF		0603 Metric	0201	1	3.3 V	3 A	125 ¯C	-40 °C	11 V	Zener	Ethernet HDMI	6.5 V
Infineon Technologies ESD3V3S1B02LSE6327XTSA1	Surface Mount	PG-TSSLP-2-1	14 pF		0603 Metric	0201		3.3 V	8 A	125 ¯C	-40 °C	6.8 V	Zener	General Purpose		1
Infineon Technologies ESD3V3U4ULCE6327XTSA1	Surface Mount	PG-TSLP-9-1	0.4 pF			9-XFDFN	4	3.3 V	3 A	125 ¯C	-40 °C	11 V	Zener	Ethernet HDMI
Infineon Technologies ESD3V3S1B02LRHE6327XTSA1	Surface Mount	PG-TSLP-2-17	14 pF			SOD-882		3.3 V	8 A	125 ¯C	-40 °C	6.8 V	Zener	General Purpose		1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

11V (Typ) Clamp 3A (8/20µs) Ipp Tvs Diode Surface Mount PG-TSLP-9-1
