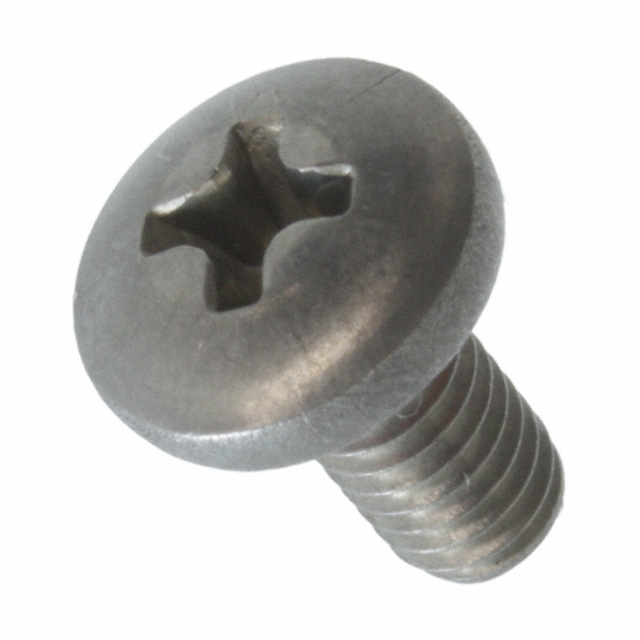

RM4X8MM 2701

Active

APM HEXSEAL

MACH SCREW PAN PHILLIPS M4X0.7

Search across all available documentation for this part.

Active

APM HEXSEAL

MACH SCREW PAN PHILLIPS M4X0.7

Technical Specifications

Parameters and characteristics commom to parts in this series

MACH SCREW PAN PHILLIPS M4X0.7

Part	Thread Size	Screw Head Type	Type	Length - Below Head [x]	Length - Below Head [x]	Head Diameter [diameter]	Head Diameter [diameter]	Material	Features	Head Height [custom]	Head Height [custom]	Length - Overall [x]	Length - Overall [x]	Drive Type	Length - Below Head	Length - Below Head	Length - Below Head [custom]	Length - Below Head [custom]	Length - Overall	Length - Overall
APM HEXSEAL RM4X10MM 2701	M4x0.7	Pan Head	Machine Screw	10 mm	0.394 in	8.69 mm	0.342 in	Stainless Steel	Self Sealing	0.12 in	3.05 mm	0.514 in	13.06 mm	Phillips
APM HEXSEAL RM4X6MM 2701	M4x0.7	Pan Head	Machine Screw			8.69 mm	0.342 in	Stainless Steel	Self Sealing	0.12 in	3.05 mm	0.356 in	9.04 mm	Phillips	6 mm	0.236 in
APM HEXSEAL RM4X8MM 2701	M4x0.7	Pan Head	Machine Screw			8.69 mm	0.342 in	Stainless Steel	Self Sealing	0.12 in	3.05 mm	0.435 in	11.05 mm	Phillips			8 mm	0.315 in
APM HEXSEAL RM4X20MM 2701	M4x0.7	Pan Head	Machine Screw			8.69 mm	0.342 in	Stainless Steel	Self Sealing	0.12 in	3.05 mm			Phillips	20 mm	0.787 in			23.05 mm	0.907 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

M4x0.7 Pan Head Machine Screw Phillips Drive Stainless Steel
