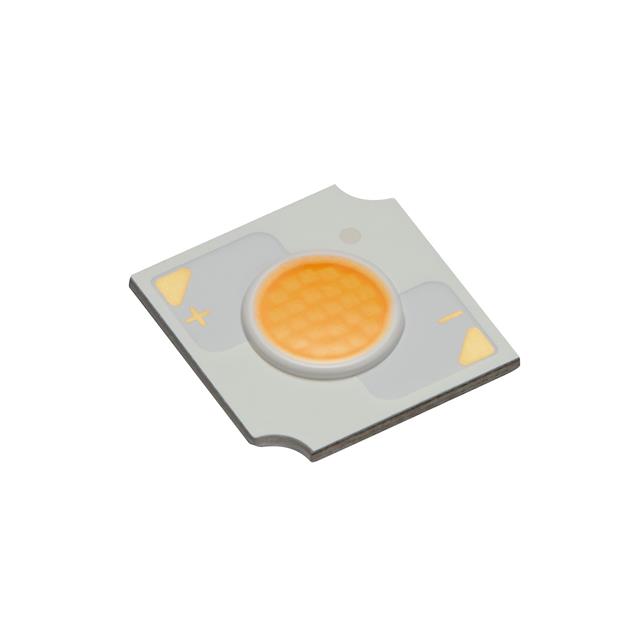

CLU703-1202E1-303M2X2

Active

Citizen

LED COB CLU703 WM WHT SQ 3000K

Search across all available documentation for this part.

Active

Citizen

LED COB CLU703 WM WHT SQ 3000K

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CLU703-1202E1-303M2X2	CLU703 Series

CCT (K)	3000 K	3000 K
Color	White, Warm	White, Warm
Configuration	Square	Square
CRI (Color Rendering Index)	80	80 - 97
Current - Max [Max]	600 mA	600 mA
Current - Test	350 mA	350 mA
Features	With Connector	With Connector
Height [z]	1.4 mm	1.4 mm
Lens Type	Flat	Flat
Light Emitting Surface (LES) [diameter]	6 mm Dia	6 mm Dia
Lumens/Watt @ Current - Test	128 lm/W	100 - 128 lm/W
Luminous Flux @ Current/Temperature	-	1370 lm
Temperature - Test	85 °C	85 °C
Type	Chip On Board (COB)	Chip On Board (COB)
Voltage - Forward (Vf) (Typ)	36.5 V	36.5 V

LED COB CLU703 WM WHT SQ 3000K

Part	Height [z]	CCT (K)	Temperature - Test	Color	Current - Max [Max]	Type	Light Emitting Surface (LES) [diameter]	Current - Test	Features	Configuration	Lumens/Watt @ Current - Test	Voltage - Forward (Vf) (Typ)	Lens Type	CRI (Color Rendering Index)	Luminous Flux @ Current/Temperature
Citizen CLU703-1202E1-303M2X2	1.4 mm	3000 K	85 °C	Warm, White	600 mA	Chip On Board (COB)	6 mm Dia	350 mA	With Connector	Square	128 lm/W	36.5 V	Flat	80
Citizen CLU703-1202E1-303H7X5	1.4 mm	3000 K	85 °C	Warm, White	600 mA	Chip On Board (COB)	6 mm Dia	350 mA	With Connector	Square	100 lm/W	36.5 V	Flat	97	1370 lm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 7.00

General part information

LED Lighting COBs Engines Modules Chip On Board (COB) CLU703 White, Warm Square
