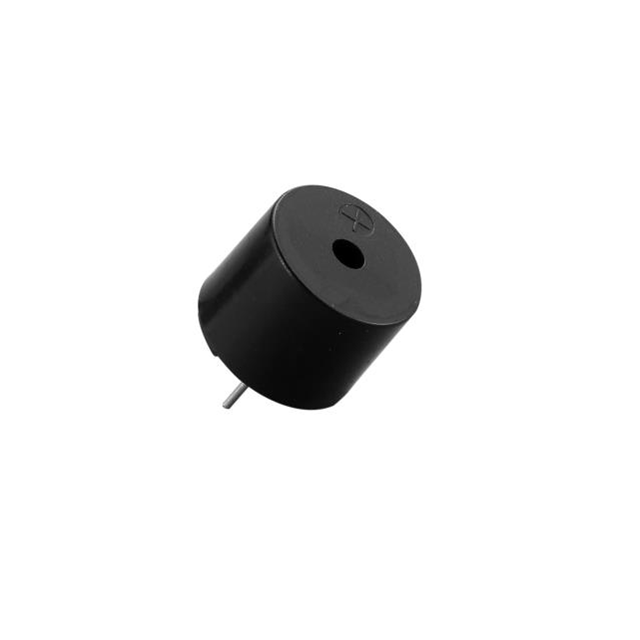

EMX-7T05SP

Active

East Electronics

BUZZER 5V 12MM TH

Search across all available documentation for this part.

Active

East Electronics

BUZZER 5V 12MM TH

Technical Specifications

Parameters and characteristics for this part

BUZZER 5V 12MM TH

Part	Termination	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Mounting Type	Voltage Range [Min]	Voltage Range [Max]	Current - Supply	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Rated	Frequency	Operating Mode	Sound Pressure Level (SPL)
East Electronics EMX-7T05SP	PC Pins	0.394 in	10 mm	12 mm	0.472 in	Through Hole	4 VDC	6.5 V	30 mA	85 °C	-40 °C	5 V	2.3 kHz	Continuous	85 dB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Buzzers 5 V 30mA 2.3kHz 85dB @ 5V, 10cm Through Hole PC Pins
