342-104-555-207
ActiveEDAC Inc.

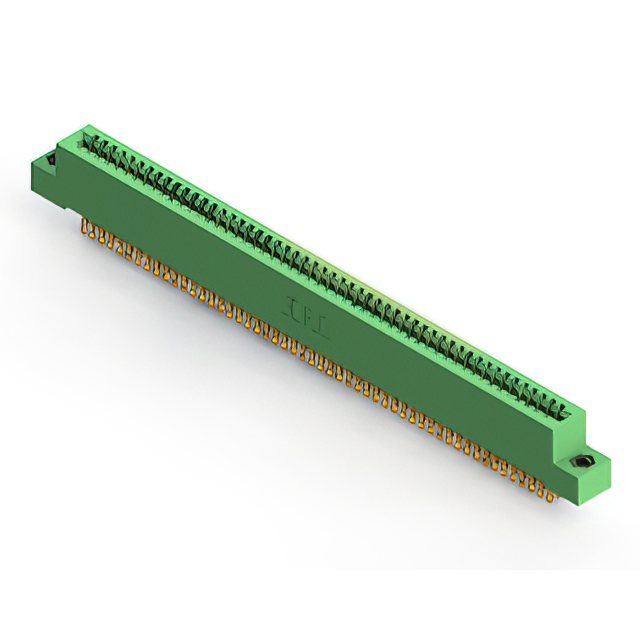

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 104 CONTACTS, PANEL MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
342-104-555-207
ActiveEDAC Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 104 CONTACTS, PANEL MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 342-104-555-207 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Extender |
| Flange Feature | Top Opening, Flush Mount, M3, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 104 |
| Number of Positions/Bay/Row [custom] | 52 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder Eyelet(s) |
| Termination Rows | 2 |
342-104 Series
| Part | Contact Type | Number of Rows | Number of Positions | Contact Finish | Mounting Type | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Termination | Gender | Card Type | Contact Material | Read Out | Number of Positions/Bay/Row [custom] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness | Contact Finish Thickness | Material - Insulation | Pitch [x] | Pitch [x] | Color | Termination Rows | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Cantilever | 2 | 104 | Gold | Through Hole | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Wire Wrap | Female | Non Specified - Dual Edge | Copper Alloy | Dual | 52 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 2.54 mm | 0.1 in | Green | 2 | |
EDAC Inc. | Cantilever | 2 | 104 | Gold | Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | Wire Wrap | Female | Non Specified - Dual Edge | Copper Alloy | Dual | 52 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 2.54 mm | 0.1 in | Green | 2 | |||
EDAC Inc. | Cantilever | 2 | 104 | Gold | Through Hole Right Angle | 3.96 mm | 0.156 in | Flush Mount Top Opening Unthreaded | Solder Wire Wrap | Female | Non Specified - Dual Edge | Copper Alloy | Dual | 52 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 2.54 mm | 0.1 in | Green | 2 | |
EDAC Inc. | Cantilever | 2 | 104 | Gold | Through Hole | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Solder | Female | Non Specified - Dual Edge | Copper Alloy | Dual | 52 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 2.54 mm | 0.1 in | Green | 2 | |
EDAC Inc. | Cantilever | 2 | 104 | Gold | Through Hole | 3.96 mm | 0.156 in | Flush Mount Top Opening Unthreaded | Wire Wrap | Female | Non Specified - Dual Edge | Copper Alloy | Dual | 52 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 2.54 mm | 0.1 in | Green | 2 | |
EDAC Inc. | Cantilever | 2 | 104 | Gold | Through Hole | 3.96 mm | 0.156 in | Flush Mount Top Opening Unthreaded | Solder | Female | Non Specified - Dual Edge | Copper Alloy | Dual | 52 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 2.54 mm | 0.1 in | Green | 2 | |
EDAC Inc. | Cantilever | 2 | 104 | Gold | Through Hole | 2.95 mm | 0.116 in | Floating Bobbin Flush Mount | Wire Wrap | Female | Non Specified - Dual Edge | Copper Alloy | Dual | 52 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 2.54 mm | 0.1 in | Green | 2 | |
EDAC Inc. | Cantilever | 2 | 104 | Gold | Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | Solder | Female | Non Specified - Dual Edge | Copper Alloy | Dual | 52 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 2.54 mm | 0.1 in | Green | 2 | |||
EDAC Inc. | Cantilever | 2 | 104 | Gold | Through Hole | Flush Mount M3 Threaded Insert Top Opening | Wire Wrap | Female | Non Specified - Dual Edge | Copper Alloy | Dual | 52 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 2.54 mm | 0.1 in | Green | 2 | |||
EDAC Inc. | Cantilever | 2 | 104 | Gold | Board Edge Straddle Mount | Flush Mount M3 Threaded Insert Top Opening | Solder Eyelet(s) | Female | Non Specified - Dual Edge | Copper Alloy | Dual | 52 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 2.54 mm | 0.1 in | Green | 2 | Card Extender |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
342-104 Series
104 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
