11-10-W

Active

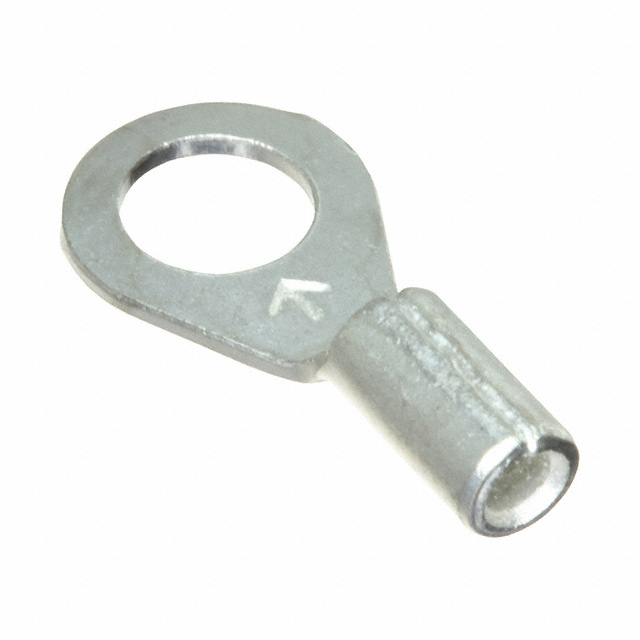

22-18 AWG NON-INSULATED BRAZED SEAM RING TONGUE TERMINAL

Search across all available documentation for this part.

Active

22-18 AWG NON-INSULATED BRAZED SEAM RING TONGUE TERMINAL

Technical Specifications

Parameters and characteristics for this part

22-18 AWG NON-INSULATED BRAZED SEAM RING TONGUE TERMINAL

Part	Features	Thickness	Thickness	Length - Overall [x]	Length - Overall [x]	Width - Outer Edges [y]	Width - Outer Edges [y]	Termination	Stud/Tab Size	Contact Material	Mounting Type	Contact Finish	Insulation	Terminal Type	Wire Gauge [Max]	Wire Gauge [Min]
3M 11-10-W	Brazed Seam	0.03 in	0.76 mm	17.78 mm	0.7 in	0.33 in	8.38 mm	Crimp	10 Stud	Copper	Free Hanging (In-Line)	Tin	Non-Insulated	Circular	22 AWG	17.5 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Ring Terminal Connector 10 Stud Circular 18-22 AWG Crimp
