Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BALF-CC26-05D3 | BALF-CC26-05D3 Series |
|---|---|---|
| - | - | |
| Frequency Range [Max] | 2.5 GHz | 2.5 GHz |
| Frequency Range [Min] | 2.4 GHz | 2.4 GHz |
| Impedance - Unbalanced/Balanced [custom] | 50 Ohm | 50 Ohm |
| Impedance - Unbalanced/Balanced [custom] | 50 | 50 |
| Insertion Loss (Max) [Max] | 1.2 dB | 1.2 dB |
| Mounting Type | Surface Mount | Surface Mount |

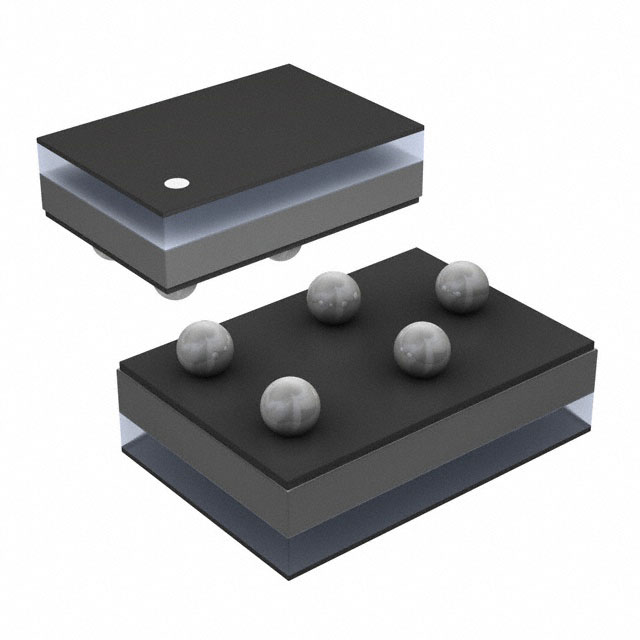

| Package / Case | 5-UFBGA, CSPBGA | 5-UFBGA, CSPBGA |
| Return Loss (Min) [Min] | -23 dB | -23 dB |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
BALF-CC26-05D3 Series
50 Ω / conjugate match to CC2610, CC2620, CC2630, CC2640 and CC2650
| Part | Mounting Type | Insertion Loss (Max) [Max] | Return Loss (Min) [Min] | Impedance - Unbalanced/Balanced [custom] | Impedance - Unbalanced/Balanced [custom] | Frequency Range [Max] | Frequency Range [Min] | Package / Case |
|---|---|---|---|---|---|---|---|---|
STMicroelectronics BALF-CC26-05D3 | Surface Mount | 1.2 dB | -23 dB | 50 Ohm | 50 | 2.5 GHz | 2.4 GHz | 5-UFBGA, CSPBGA |
STMicroelectronics BALF-CC26-05D3 |
Description
General part information
BALF-CC26-05D3 Series
STMicroelectronics' BALF-CC26-05D3 is an ultra-miniature balun, integrating both matching network and harmonics filter.
Matching impedance has been customized for the TI CC26xx series 5x5 SimpleLink™ multistandard wireless MCU.
The device uses STMicroelectronics' IPD technology on a non-conductive glass substrate, which optimizes RF performance.
