AS2.5/4

Active

Altech Corporation

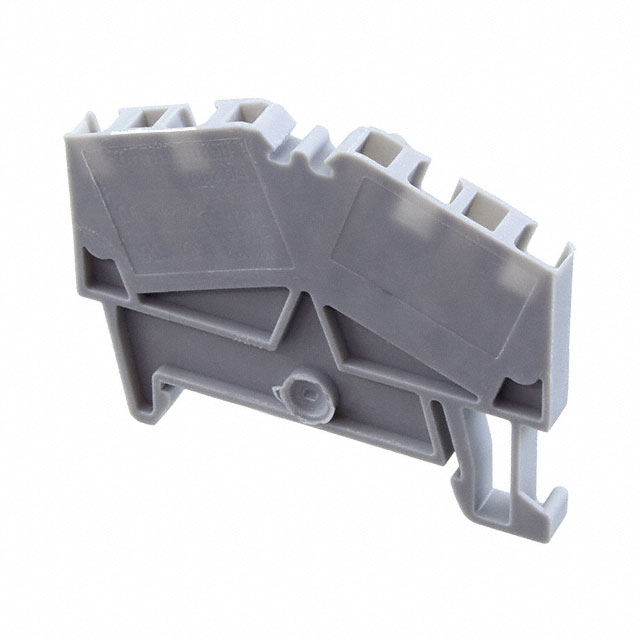

ANGULAR SPRING CLAMP 2IN 2OUT 25

Search across all available documentation for this part.

Active

Altech Corporation

ANGULAR SPRING CLAMP 2IN 2OUT 25

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AS2.5/4	AS2.5 Series

Color	Gray	Red, Green, Gray, Black, Blue, Yellow
Current - IEC	24 A	24 A
Current - UL	25 A	25 A
Material - Insulation	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Number of Levels	1	1
Number of Positions	4	2 - 4
Stripping Length	11 mm	11 mm
Terminal - Width	5 mm	5 mm
Termination Style	Push In, Spring	Push In, Spring
Type	Feed Through	Feed Through
Voltage - IEC	800 V	800 V
Voltage - UL	600 V	600 V
Wire Gauge or Range - AWG [Max]	22 AWG	22 AWG
Wire Gauge or Range - AWG [Min]	12 AWG	12 AWG
Wire Gauge or Range - mm˛	-	0.34 mm˛
Wire Gauge or Range - mm˛	-	2.5 mm˛
Wire Gauge or Range - mm² [Max]	2.5 mm²	2.5 mm²
Wire Gauge or Range - mm² [Min]	0.34 mm²	0.34 mm²

ANGULAR SPRING CLAMP 1IN 2OUT 25

Part	Current - UL	Stripping Length	Termination Style	Material - Insulation	Current - IEC	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]	Voltage - UL	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Type	Terminal - Width	Number of Levels	Color	Voltage - IEC	Number of Positions	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]
Altech Corporation AS2.5/3/R	25 A	11 mm	Push In, Spring	Polyamide (PA66), Nylon 6/6	24 A	0.34 mm˛	2.5 mm˛	600 V	12 AWG	22 AWG	Feed Through	5 mm	1	Red	800 V
Altech Corporation AS2.5/G	25 A	11 mm	Push In, Spring	Polyamide (PA66), Nylon 6/6	24 A	0.34 mm˛	2.5 mm˛	600 V	12 AWG	22 AWG	Feed Through	5 mm	1	Green	800 V	2
Altech Corporation AS2.5	25 A	11 mm	Push In, Spring	Polyamide (PA66), Nylon 6/6	24 A			600 V	12 AWG	22 AWG	Feed Through	5 mm	1	Gray	800 V	2	0.34 mm²	2.5 mm²
Altech Corporation AS2.5/3/BL	25 A	11 mm	Push In, Spring	Polyamide (PA66), Nylon 6/6	24 A			600 V	12 AWG	22 AWG	Feed Through	5 mm	1	Black	800 V		0.34 mm²	2.5 mm²
Altech Corporation AS2.5/4	25 A	11 mm	Push In, Spring	Polyamide (PA66), Nylon 6/6	24 A			600 V	12 AWG	22 AWG	Feed Through	5 mm	1	Gray	800 V	4	0.34 mm²	2.5 mm²
Altech Corporation AS2.5/3/BU	25 A	11 mm	Push In, Spring	Polyamide (PA66), Nylon 6/6	24 A	0.34 mm˛	2.5 mm˛	600 V	12 AWG	22 AWG	Feed Through	5 mm	1	Blue	800 V
Altech Corporation AS2.5/3	25 A	11 mm	Push In, Spring	Polyamide (PA66), Nylon 6/6	24 A			600 V	12 AWG	22 AWG	Feed Through	5 mm	1	Gray	800 V		0.34 mm²	2.5 mm²
Altech Corporation AS2.5/Y	25 A	11 mm	Push In, Spring	Polyamide (PA66), Nylon 6/6	24 A			600 V	12 AWG	22 AWG	Feed Through	5 mm	1	Yellow	800 V	2	0.34 mm²	2.5 mm²

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 1.74

General part information

Terminal Block Connector 4 Position Feed Through Gray 12-22 AWG
