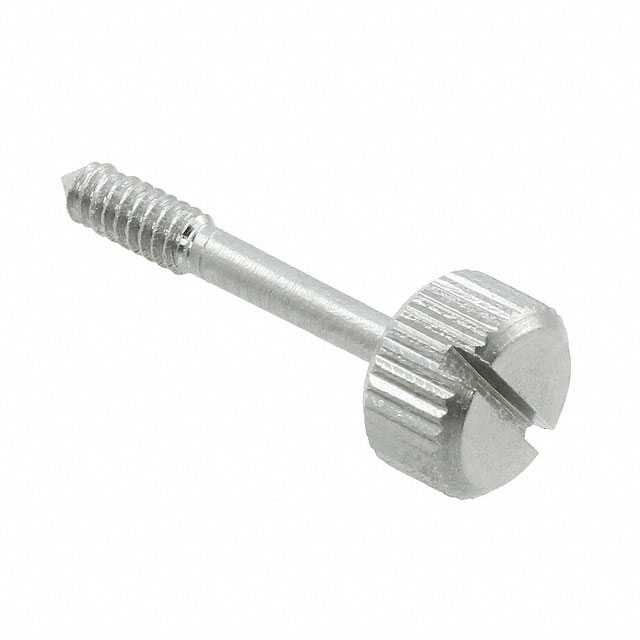

0101-SS-20

Active

RAF Electronic Hardware

5/16HD X 23/32 X 4-40 THD

Search across all available documentation for this part.

Active

RAF Electronic Hardware

5/16HD X 23/32 X 4-40 THD

Technical Specifications

Parameters and characteristics for this part

5/16HD X 23/32 X 4-40 THD

Part	Material	Type	Length - Overall [x]	Length - Overall [x]	Screw Head Type	Drive Type	Length - Below Head [x]	Length - Below Head [x]	Thread Size	Plating	Head Height	Head Height	Head Diameter [diameter]	Head Diameter [diameter]
RAF Electronic Hardware 0101-SS-20	Stainless Steel	Panel Screw	21.43 mm	0.844 "	Knob	Slotted	16.67 mm	0.656 in	#4-40	Passivated	0.188 in	4.76 mm	0.313 in	7.94 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

#4-40 Knob Panel Screw Slotted Drive Stainless Steel
