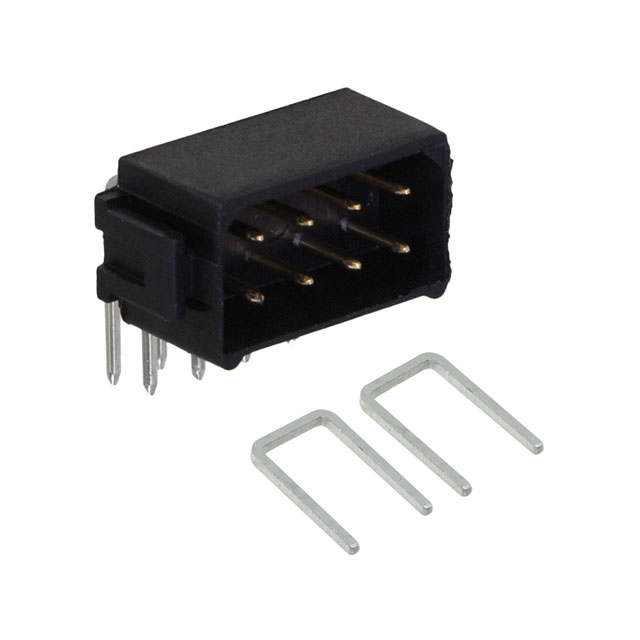

M80-8680822

Active

Harwin Inc.

BOARD CONNECTOR, 8 CONTACT(S), 2 ROW(S), MALE, RIGHT ANGLE, 0.079 INCH PITCH, SOLDER TERMINAL, LOCKING, BLACK INSULATOR, RECEPTACLE,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM80-001 M80, M83 Series Spec Sheet +2

M80-8680822

Active

Harwin Inc.

BOARD CONNECTOR, 8 CONTACT(S), 2 ROW(S), MALE, RIGHT ANGLE, 0.079 INCH PITCH, SOLDER TERMINAL, LOCKING, BLACK INSULATOR, RECEPTACLE,

Deep-Dive with AI

DocumentsM80-001 M80, M83 Series Spec Sheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M80-8680822

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin-Lead
Contact Finish Thickness - Mating	29.5 Áin
Contact Finish Thickness - Mating	0.75 Ám
Contact Finish Thickness - Post	3 µm
Contact Finish Thickness - Post	118.1 µin
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Phosphor Bronze
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	2.2 A
Fastening Type	Latch Holder
Features	Strain Relief Clips
Insulation Color	Black
Insulation Height	5.97 mm
Insulation Height	0.235 in
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	120 VDC

M80-868 Series

Part	Insulation Color	Contact Finish - Mating	Mounting Type	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating [x]	Pitch - Mating [x]	Shrouding	Insulation Height	Insulation Height	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Termination	Voltage Rating	Current Rating (Amps)	Contact Shape	Number of Positions	Number of Rows	Features	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Row Spacing - Mating	Row Spacing - Mating	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Contact Type	Number of Positions Loaded	Material Flammability Rating	Fastening Type	Style	Number of Positions
Harwin Inc. M80-8681622	Black	Gold	Through Hole Right Angle	Header	-55 °C	125 °C	0.079 in	2 mm	Shrouded - 4 Wall	5.97 mm	0.235 in	3 µm	118.1 µin	Phosphor Bronze	Solder	120 VDC	2.2 A	Circular	16	2	Strain Relief Clips	Polybutylene Terephthalate (PBT) Glass Filled	29.5 Áin	0.75 Ám	0.079 in	2 mm	0.118 in	3 mm	Tin-Lead	Male Pin	All	UL94 V-0	Latch Holder	Board to Board Cable
Harwin Inc. M80-8683422	Black	Gold	Through Hole Right Angle	Header	-55 °C	125 °C	0.079 in	2 mm	Shrouded - 4 Wall	5.97 mm	0.235 in	3 µm	118.1 µin	Phosphor Bronze	Solder	120 VDC	2.2 A	Circular		2	Strain Relief Clips	Polybutylene Terephthalate (PBT) Glass Filled	29.5 Áin	0.75 Ám	0.079 in	2 mm	0.118 in	3 mm	Tin-Lead	Male Pin	All	UL94 V-0	Latch Holder	Board to Board Cable	34
Harwin Inc. M80-8680822	Black	Gold	Through Hole Right Angle	Header	-55 °C	125 °C	0.079 in	2 mm	Shrouded - 4 Wall	5.97 mm	0.235 in	3 µm	118.1 µin	Phosphor Bronze	Solder	120 VDC	2.2 A	Circular		2	Strain Relief Clips	Polybutylene Terephthalate (PBT) Glass Filled	29.5 Áin	0.75 Ám	0.079 in	2 mm	0.118 in	3 mm	Tin-Lead	Male Pin	All	UL94 V-0	Latch Holder	Board to Board Cable	8
Harwin Inc. M80-8681222	Black	Gold	Through Hole Right Angle	Header	-55 °C	125 °C	0.079 in	2 mm	Shrouded - 4 Wall	5.97 mm	0.235 in	3 µm	118.1 µin	Phosphor Bronze	Solder	120 VDC	2.2 A	Circular		2	Strain Relief Clips	Polybutylene Terephthalate (PBT) Glass Filled	29.5 Áin	0.75 Ám	0.079 in	2 mm	0.118 in	3 mm	Tin-Lead	Male Pin	All	UL94 V-0	Latch Holder	Board to Board Cable	12
Harwin Inc. M80-8682622	Black	Gold	Through Hole Right Angle	Header	-55 °C	125 °C	0.079 in	2 mm	Shrouded - 4 Wall	5.97 mm	0.235 in	3 µm	118.1 µin	Phosphor Bronze	Solder	120 VDC	2.2 A	Circular		2	Strain Relief Clips	Polybutylene Terephthalate (PBT) Glass Filled	29.5 Áin	0.75 Ám	0.079 in	2 mm	0.118 in	3 mm	Tin-Lead	Male Pin	All	UL94 V-0	Latch Holder	Board to Board Cable	26
Harwin Inc. M80-8680622	Black	Gold	Through Hole Right Angle	Header	-55 °C	125 °C	0.079 in	2 mm	Shrouded - 4 Wall	5.97 mm	0.235 in	3 µm	118.1 µin	Phosphor Bronze	Solder	120 VDC	2.2 A	Circular		2	Strain Relief Clips	Polybutylene Terephthalate (PBT) Glass Filled	29.5 Áin	0.75 Ám	0.079 in	2 mm	0.118 in	3 mm	Tin-Lead	Male Pin	All	UL94 V-0	Latch Holder	Board to Board Cable	6
Harwin Inc. M80-8681822	Black	Gold	Through Hole Right Angle	Header	-55 °C	125 °C	0.079 in	2 mm	Shrouded - 4 Wall	5.97 mm	0.235 in	3 µm	118.1 µin	Phosphor Bronze	Solder	120 VDC	2.2 A	Circular		2	Strain Relief Clips	Polybutylene Terephthalate (PBT) Glass Filled	29.5 Áin	0.75 Ám	0.079 in	2 mm	0.118 in	3 mm	Tin-Lead	Male Pin	All	UL94 V-0	Latch Holder	Board to Board Cable	18

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 2.57
		21	$ 2.34
		105	$ 2.06
		504	$ 1.81
Newark	Each	250	$ 3.42
		500	$ 3.15
		1000	$ 2.89
		2500	$ 2.61

Description

General part information

M80-868 Series

Connector Header Through Hole, Right Angle 8 position 0.079" (2.00mm)

Documents

Technical documentation and resources

M80-001

M80, M83 Series Spec Sheet

Datasheet
