AUIR33402STRL

Obsolete

Infineon Technologies

CURRENT LIMIT SW 1-IN 1-OUT -0.3V TO 5.5V 33A AUTOMOTIVE AEC-Q100 7-PIN(6+TAB) D2PAK T/R

Search across all available documentation for this part.

Obsolete

Infineon Technologies

CURRENT LIMIT SW 1-IN 1-OUT -0.3V TO 5.5V 33A AUTOMOTIVE AEC-Q100 7-PIN(6+TAB) D2PAK T/R

Technical Specifications

Parameters and characteristics for this part

Specification	AUIR33402STRL

Current - Output (Max) [Max]	33 A
Fault Protection	UVLO, Current Limiting (Adjustable), Over Temperature
Grade	Automotive
Interface	On/Off
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Output Configuration	High Side
Output Type	N-Channel

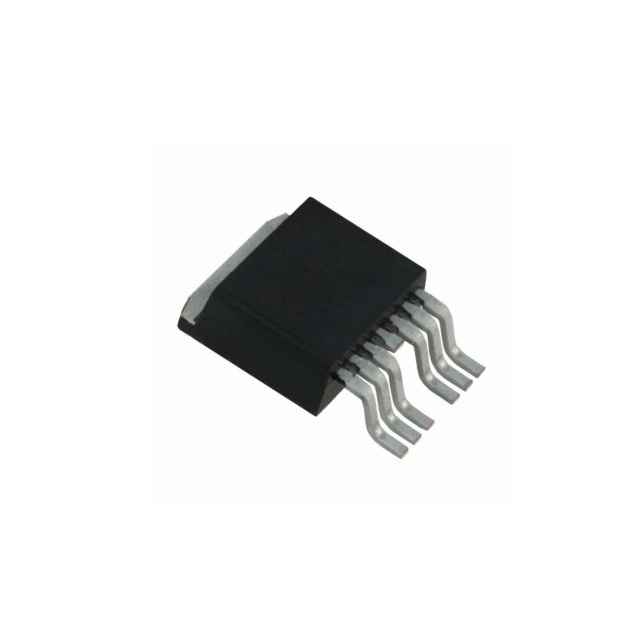

Package / Case	TO-263CB, TO-263-7, D2PAK
Qualification	AEC-Q100
Ratio - Input:Output [custom]	1:1
Rds On (Typ)	3 mOhm
Supplier Device Package	D2PAK (7-Lead)
Switch Type	General Purpose
Voltage - Load [Max]	18 V
Voltage - Load [Min]	6 V
Voltage - Supply (Vcc/Vdd)	False

Part	Qualification	Package / Case	Supplier Device Package	Mounting Type	Output Type	Voltage - Supply (Vcc/Vdd)	Rds On (Typ)	Grade	Operating Temperature [Max]	Operating Temperature [Min]	Ratio - Input:Output [custom]	Switch Type	Voltage - Load [Max]	Voltage - Load [Min]	Fault Protection	Output Configuration	Number of Outputs	Interface	Current - Output (Max) [Max]
Infineon Technologies AUIR33402STRL	AEC-Q100	D2PAK TO-263-7 TO-263CB	D2PAK (7-Lead)	Surface Mount	N-Channel		3 mOhm	Automotive	150 °C	-40 °C	1:1	General Purpose	18 V	6 V	Current Limiting (Adjustable) Over Temperature UVLO	High Side	1	On/Off	33 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Power Switch/Driver 1:1 N-Channel 33A D2PAK (7-Lead)
