M2122RFW03

Obsolete

NKK Switches

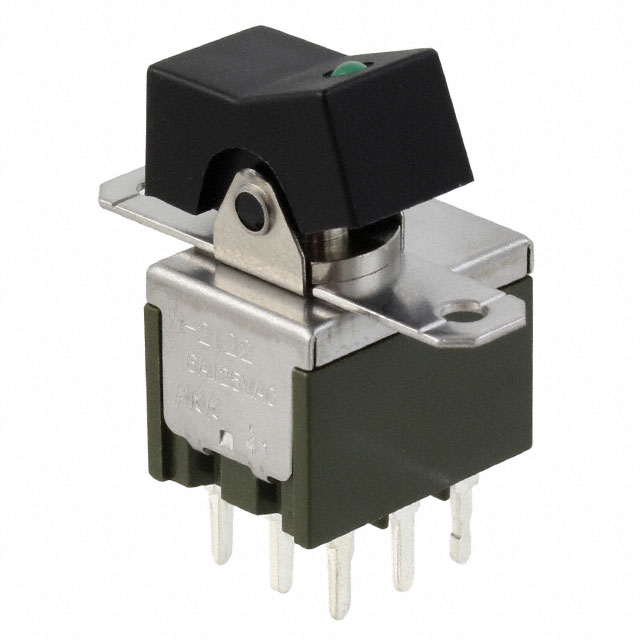

SWITCH ROCKER DPDT 6A 125V

Search across all available documentation for this part.

Obsolete

NKK Switches

SWITCH ROCKER DPDT 6A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	M2122RFW03

Actuator Marking	No Marking
Actuator Type	Concave (Standard V) - Illuminated
Approval Agency	CSA, UL
Circuit	DPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	3 A, 6 A
Electrical Life	25000 Steps
Illumination Type, Color	LED, Green
Illumination Voltage (Nominal)	2.2 VDC
Mounting Type	Panel Mount, Flange
Operating Temperature [Max] [custom]	55 °C
Operating Temperature [Min] [custom]	-10 °C
Panel Cutout Dimensions [x]	17.8 mm
Panel Cutout Dimensions [y]	10.1 mm
Switch Function	On-On
Termination Style	PC Pin
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Electrical Life	Approval Agency	Actuator Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Switch Function	Voltage Rating - DC	Termination Style	Circuit	Illumination Voltage (Nominal)	Mounting Type	Illumination Type, Color	Current Rating (Amps)	Color - Actuator/Cap	Actuator Marking	Voltage Rating - AC
NKK Switches M2122RFW03	55 °C	-10 °C	25000 Steps	CSA UL	Concave (Standard V) - Illuminated	17.8 mm	10.1 mm	On-On	30 V	PC Pin	DPDT	2.2 VDC	Flange Panel Mount	Green LED	3 A 6 A	Black	No Marking	125 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Rocker Switch DPDT 6A (AC), 3A (DC) 125 V Panel Mount, Flange
