846-014-541-803
ActiveEDAC Inc.

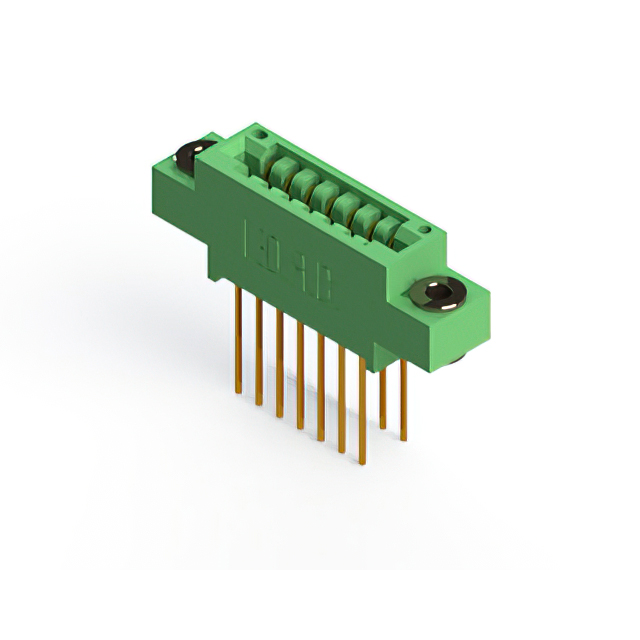

CONN EDGE DUAL FMALE 14POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
846-014-541-803
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 14POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 846-014-541-803 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, Floating Bobbin |
| Flange Feature [diameter] | 2.95 mm |
| Flange Feature [diameter] | 0.116 in |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 14 |
| Number of Positions/Bay/Row [custom] | 7 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Dual |
| Termination | Wire Wrap |
| Termination Rows | 2 |
846-014 Series
...
| Part | Read Out | Contact Material | Number of Positions/Bay/Row [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Color | Termination Rows | Termination | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Flange Feature | Number of Rows | Material - Insulation | Gender | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Contact Type | Contact Finish | Pitch [x] | Pitch [x] | Number of Positions | Card Type | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Single | Copper Alloy | 14 | 125 °C | -40 °C | Green | 1 | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 4-40 Flush Mount Threaded Insert Top Opening | 1 | Diallyl Phthalate (DAP) | Female | 10 Áin | 0.25 Ám | Through Hole | Cantilever | Gold | 0.125 in | 3.18 mm | 14 | Non Specified - Single Edge | ||||
EDAC Inc. | Dual | Copper Alloy | 7 | 125 °C | -40 °C | Green | 2 | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Floating Bobbin Top Mount Opening | 2 | Diallyl Phthalate (DAP) | Female | 10 Áin | 0.25 Ám | Through Hole | Cantilever | Gold | 0.125 in | 3.18 mm | 14 | Non Specified - Dual Edge | 2.95 mm | 0.116 in | ||
EDAC Inc. | Single | Copper Alloy | 14 | 125 °C | -40 °C | Green | 1 | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Diallyl Phthalate (DAP) | Female | 10 Áin | 0.25 Ám | Through Hole | Cantilever | Gold | 0.125 in | 3.18 mm | 14 | Non Specified - Single Edge | |||||
EDAC Inc. | Single | Copper Alloy | 14 | 125 °C | -40 °C | Green | 1 | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Side Mount Opening Unthreaded | 1 | Diallyl Phthalate (DAP) | Female | 10 Áin | 0.25 Ám | Through Hole | Cantilever | Gold | 0.125 in | 3.18 mm | 14 | Non Specified - Single Edge | 3.25 mm | 0.128 in | ||
EDAC Inc. | Single | Copper Alloy | 14 | 125 °C | -40 °C | Green | 1 | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Flush Mount M3 Threaded Insert Top Opening | 1 | Diallyl Phthalate (DAP) | Female | 10 Áin | 0.25 Ám | Through Hole | Cantilever | Gold | 0.125 in | 3.18 mm | 14 | Non Specified - Single Edge | ||||
EDAC Inc. | Dual | Copper Alloy | 7 | 125 °C | -40 °C | Green | 2 | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Diallyl Phthalate (DAP) | Female | 10 Áin | 0.25 Ám | Through Hole Right Angle | Cantilever | Gold | 0.125 in | 3.18 mm | 14 | Non Specified - Dual Edge | 3.25 mm | 0.128 in | |||
EDAC Inc. | Dual | Copper Alloy | 7 | 125 °C | -40 °C | Green | 2 | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Top Mount Opening Unthreaded | 2 | Diallyl Phthalate (DAP) | Female | 10 Áin | 0.25 Ám | Through Hole Right Angle | Cantilever | Gold | 0.125 in | 3.18 mm | 14 | Non Specified - Dual Edge | 3.96 mm | 0.156 in | ||
EDAC Inc. | Single | Copper Alloy | 14 | 125 °C | -40 °C | Green | 1 | Solder Eyelet(s) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Top Mount Opening Unthreaded | 1 | Diallyl Phthalate (DAP) | Female | 10 Áin | 0.25 Ám | Through Hole | Cantilever | Gold | 0.125 in | 3.18 mm | 14 | Non Specified - Single Edge | 3.96 mm | 0.156 in | ||
EDAC Inc. | Dual | Copper Alloy | 7 | 125 °C | -40 °C | Green | 2 | Solder Eyelet(s) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Flush Mount Side Opening Unthreaded | 2 | Diallyl Phthalate (DAP) | Female | 10 Áin | 0.25 Ám | Through Hole | Cantilever | Gold | 0.125 in | 3.18 mm | 14 | Non Specified - Dual Edge | 3.25 mm | 0.128 " | ||
EDAC Inc. | Dual | Copper Alloy | 7 | 125 °C | -40 °C | Green | 2 | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Flush Mount Side Opening Unthreaded | 2 | Diallyl Phthalate (DAP) | Female | 10 Áin | 0.25 Ám | Through Hole Right Angle | Cantilever | Gold | 0.125 in | 3.18 mm | 14 | Non Specified - Dual Edge | 3.25 mm | 0.128 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
846-014 Series
14 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Green
