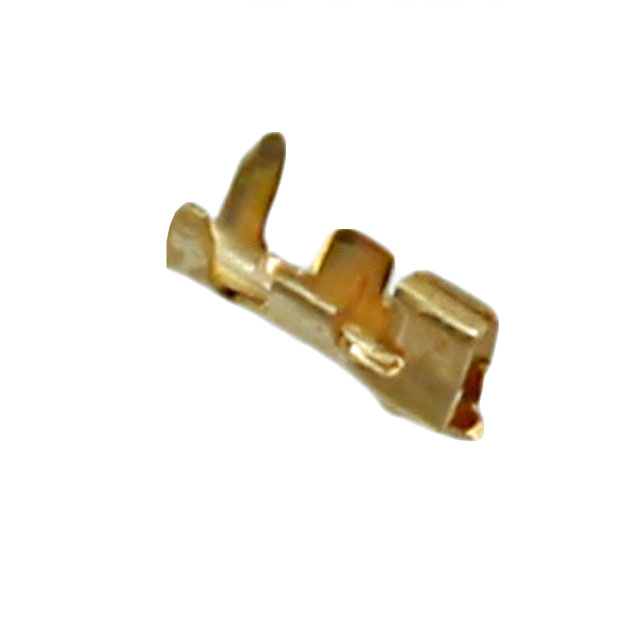

IL-Z-C3-A-1-15000
ActiveJAE Electronics
CONN SOCKET 28-32AWG CRIMP GOLD
Deep-Dive with AI
Search across all available documentation for this part.
IL-Z-C3-A-1-15000
ActiveJAE Electronics
CONN SOCKET 28-32AWG CRIMP GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | IL-Z-C3-A-1-15000 |
|---|---|
| Contact Finish | Gold |
| Contact Termination | Crimp |
| Pin or Socket | Socket |
| Wire Gauge [Max] | 32 AWG |
| Wire Gauge [Min] | 27.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.10 | |
| 10 | $ 0.08 | |||
| 25 | $ 0.06 | |||
| 50 | $ 0.06 | |||
| 100 | $ 0.06 | |||
| 250 | $ 0.05 | |||
| 500 | $ 0.05 | |||
| 1000 | $ 0.04 | |||
| 2500 | $ 0.04 | |||
| Tape & Reel (TR) | 15000 | $ 0.02 | ||
Description
General part information
IL-Z-C3 Series
Socket Contact Gold 28-32 AWG Crimp
