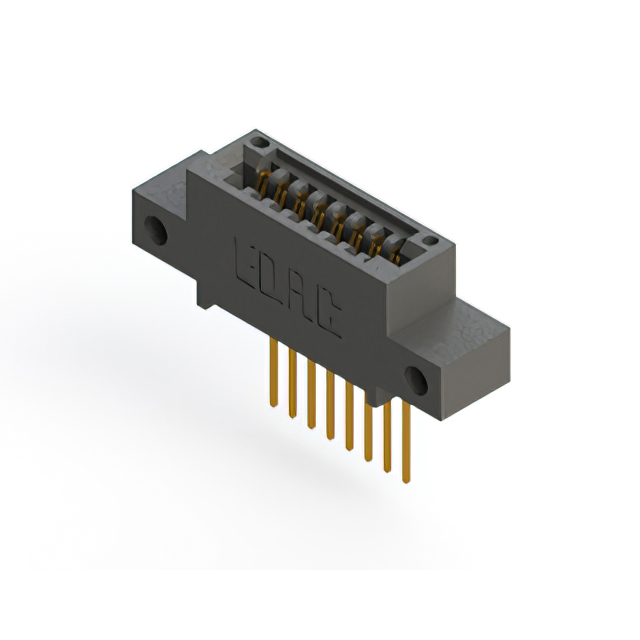

395-008-540-412

Active

EDAC Inc.

.100" (2.54MM) PITCH CARD EDGE CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

395-008-540-412

Active

EDAC Inc.

.100" (2.54MM) PITCH CARD EDGE CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	395-008-540-412

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Side Mount Opening, Unthreaded
Flange Feature	3.25 mm
Flange Feature	0.128 in
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	8
Number of Positions/Bay/Row [custom]	8
Number of Positions/Bay/Row [custom]	8
Number of Positions/Bay/Row [custom]	8
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Single
Termination	Wire Wrap
Termination Rows	1

395-008 Series

...

Part	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Flange Feature	Flange Feature	Flange Feature	Mounting Type	Card Type	Contact Finish	Material - Insulation	Contact Finish Thickness	Contact Finish Thickness	Color	Contact Type	Gender	Number of Positions	Number of Rows	Pitch [x]	Pitch [x]	Read Out	Termination Rows	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Features	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 395-008-544-612	8	8	8	Copper Alloy	-40 °C	105 ░C	Wire Wrap	Side Mount Opening Unthreaded	3.25 mm	0.128 in	Through Hole	Non Specified - Single Edge	Gold	Polyester Thermoplastic	10 Áin	0.25 Ám	Black	Cantilever	Female	8	1	2.54 mm	0.1 in	Single	1	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 395-008-524-488	8	8	8	Copper Alloy	-40 °C	105 ░C	Solder	4-40 Threaded Insert Top Mount Opening			Through Hole	Non Specified - Single Edge	Gold	Polyester Thermoplastic	10 Áin	0.25 Ám	Black	Cantilever	Female	8	1	2.54 mm	0.1 in	Single	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Card Guides
EDAC Inc. 395-008-540-403	8	8	8	Copper Alloy	-40 °C	105 ░C	Wire Wrap	Floating Bobbin Top Mount Opening			Through Hole	Non Specified - Single Edge	Gold	Polyester Thermoplastic	10 Áin	0.25 Ám	Black	Cantilever	Female	8	1	2.54 mm	0.1 in	Single	1	1.37 mm	0.054 "	1.78 mm	0.07 in		2.95 mm	0.116 in
EDAC Inc. 395-008-540-688	8	8	8	Copper Alloy	-40 °C	105 ░C	Wire Wrap	4-40 Threaded Insert Top Mount Opening			Through Hole	Non Specified - Single Edge	Gold	Polyester Thermoplastic	10 Áin	0.25 Ám	Black	Cantilever	Female	8	1	2.54 mm	0.1 in	Single	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Card Guides
EDAC Inc. 395-008-525-158	8	8	8	Copper Alloy	-40 °C	105 ░C	Solder	4-40 Flush Mount Threaded Insert Top Opening			Through Hole	Non Specified - Single Edge	Gold	Polyester Thermoplastic	10 Áin	0.25 Ám	Black	Cantilever	Female	8	1	2.54 mm	0.1 in	Single	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Card Guides
EDAC Inc. 395-008-541-403	8	8	8	Copper Alloy	-40 °C	105 ░C	Wire Wrap	Floating Bobbin Top Mount Opening			Through Hole	Non Specified - Single Edge	Gold	Polyester Thermoplastic	10 Áin	0.25 Ám	Black	Cantilever	Female	8	1	2.54 mm	0.1 in	Single	1	1.37 mm	0.054 "	1.78 mm	0.07 in		2.95 mm	0.116 in
EDAC Inc. 395-008-542-402	8	8	8	Copper Alloy	-40 °C	105 ░C	Wire Wrap		3.25 mm	0.128 in	Through Hole	Non Specified - Single Edge	Gold	Polyester Thermoplastic	10 Áin	0.25 Ám	Black	Cantilever	Female	8	1	2.54 mm	0.1 in	Single	1	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 395-008-559-608	8	8	8	Copper Alloy	-40 °C	105 ░C	Solder	4-40 Threaded Insert Top Mount Opening			Through Hole Right Angle	Non Specified - Single Edge	Gold	Polyester Thermoplastic	10 Áin	0.25 Ám	Black	Cantilever	Female	8	1	2.54 mm	0.1 in	Single	1	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 395-008-540-412	8	8	8	Copper Alloy	-40 °C	105 ░C	Wire Wrap	Side Mount Opening Unthreaded	3.25 mm	0.128 in	Through Hole	Non Specified - Single Edge	Gold	Polyester Thermoplastic	10 Áin	0.25 Ám	Black	Cantilever	Female	8	1	2.54 mm	0.1 in	Single	1	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 395-008-541-101	8	8	8	Copper Alloy	-40 °C	105 ░C	Wire Wrap				Through Hole	Non Specified - Single Edge	Gold	Polyester Thermoplastic	10 Áin	0.25 Ám	Black	Cantilever	Female	8	1	2.54 mm	0.1 in	Single	1	1.37 mm	0.054 "	1.78 mm	0.07 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 9.89
Newark	Each	25	$ 16.19
		50	$ 15.66
		100	$ 14.62
		250	$ 14.10
		500	$ 13.32

Description

General part information

395-008 Series

8 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
