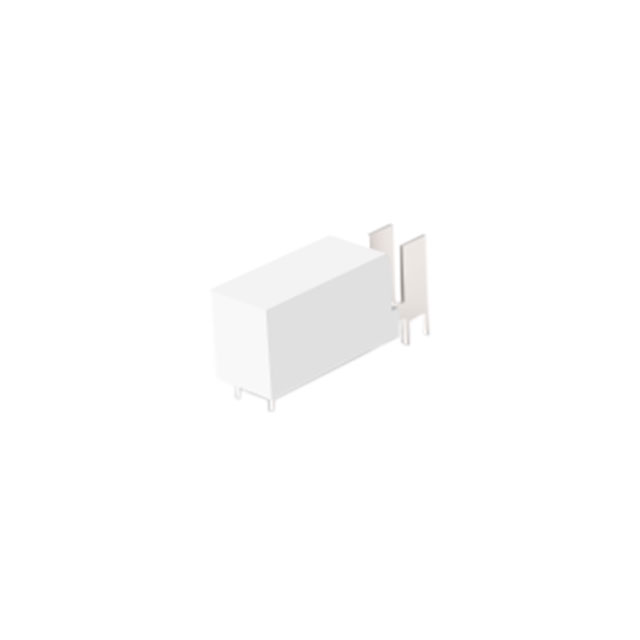

5-1415520-1

Active

TE Connectivity AMP Connectors

RELAY GEN PURPOSE SPST 16A 12V

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

RELAY GEN PURPOSE SPST 16A 12V

Technical Specifications

Parameters and characteristics for this part

RELAY GEN PURPOSE SPST 16A 12V

Part	Coil Type	Must Operate Voltage	Switching Voltage [Max]	Coil Insulation	Relay Type	Termination Style	Termination Style	Seal Rating	Operating Temperature [Min]	Operating Temperature [Max]	Coil Resistance	Release Time	Coil Current	Operate Time	Contact Rating (Current)	Load - Max Switching	Must Release Voltage	Coil Voltage	Contact Form	Contact Material	Approval Agency	Mounting Type
TE Connectivity AMP Connectors 5-1415520-1	Non Latching	8.4 VDC	400 VAC	Class F	General Purpose	PC Pin, Quick Connect	0.25 in	Sealed - Flux Protection	-40 °C	105 ░C	360 Ohms	7 ms	33.3 mA	11 ms	16 A	6400 VA	1.2 VDC	12 VDC	SPST-NO (1 Form A)	Silver Nickel (AgNi)	CQC, cURus, VDE	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
