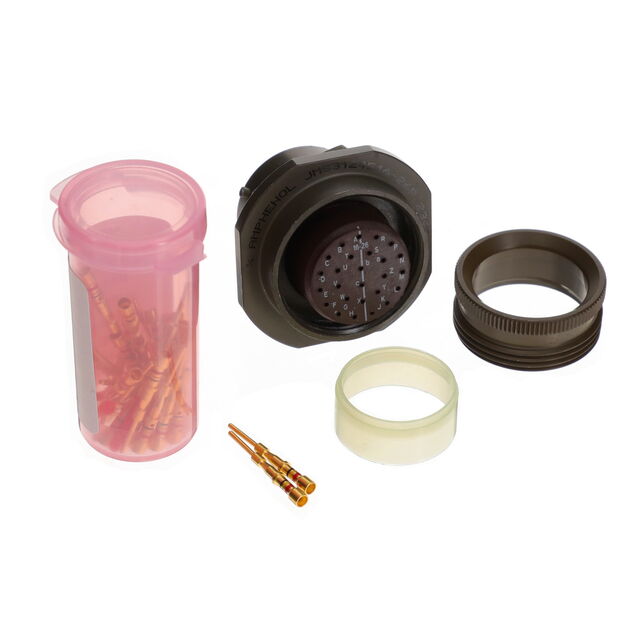

MS3124E16-26P - MS3124E16-26P

MS3124E16-26P

Active
Amphenol Aerospace Operations

MIL-26482 MS/PT/CMB RECEPT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet10-101949-010
MS3124E16-26P - MS3124E16-26P

MS3124E16-26P

Active
Amphenol Aerospace Operations

MIL-26482 MS/PT/CMB RECEPT

Deep-Dive with AI

DocumentsDatasheet10-101949-010

Technical Specifications

Parameters and characteristics for this part

SpecificationMS3124E16-26P
ApplicationsMilitary, Mass Transit, Instrumentation, Aerospace, Industrial
ColorOlive Drab
Connector TypeReceptacle, Male Pins
Contact Finish - MatingGold
Contact MaterialCopper Alloy
Current Rating (Amps)7.5 A
Fastening TypeBayonet Lock
GradeMilitary
Ingress ProtectionEnvironment Resistant
Insert MaterialNeoprene
Mounting FeatureBulkhead - Front Side Nut
Number of Positions26
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
OrientationN
Primary MaterialMetal
QualificationMIL-DTL-26482 Series I
Shell FinishOlive Drab Chromate over Cadmium
Shell MaterialAluminum
Shell Size - Insert [Max]26
Shell Size - Insert [Min]16
ShieldingUnshielded
TerminationCrimp
Voltage Rating600 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBag 1$ 253.02
10$ 198.35
25$ 181.11
50$ 169.50

Description

General part information

MS3124E16 Series

26 Position Circular Connector Receptacle, Male Pins Crimp

Documents

Technical documentation and resources

Datasheet

Datasheet

10-101949-010

Related Document
