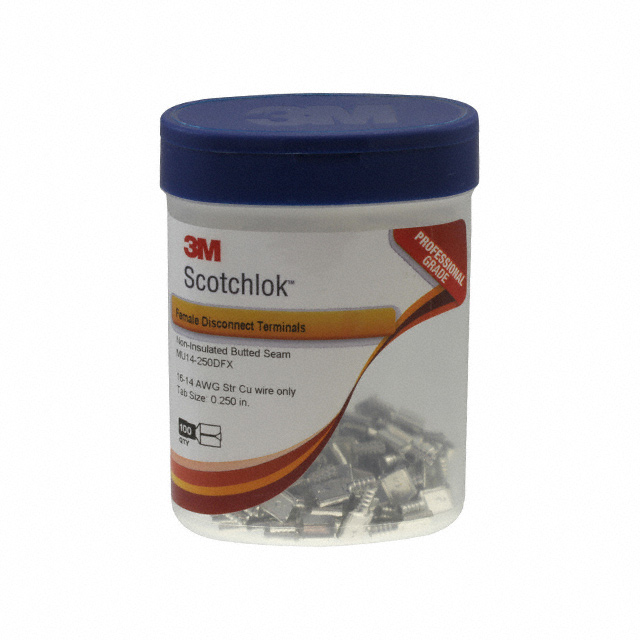

MU14-250DFX
Active3M
QUICK DISCONNECT TERMINAL, SCOTCHLOK SERIES, FEMALE QUICK DISCONNECT, 6.35MM X 0.81MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsManufacturer Catalogue EN
MU14-250DFX
Active3M
QUICK DISCONNECT TERMINAL, SCOTCHLOK SERIES, FEMALE QUICK DISCONNECT, 6.35MM X 0.81MM
Deep-Dive with AI
DocumentsManufacturer Catalogue EN
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MU14-250DFX | MU14 Series |
|---|---|---|
| Color | - | Blue |
| Contact Finish | Tin | Tin, Nickel |
| Contact Material | Brass | ETP, Copper, Brass, Steel |
| Diameter - Barrel ID | - | 0.09 " |
| Diameter - Barrel ID | - | 2.29 mm |
| Features | Butted Seam | Butted Seam |
| Gender | Female | Female, Male |
| Insulation | Non-Insulated | Non-Insulated, Fully Insulated |
| Insulation Diameter | - | 0.08 in |
| Insulation Diameter | - | 2.03 mm |
| Length - Overall | - | 0.9 in |
| Length - Overall | - | 22.86 - 23.62 mm |
| Length - Overall [x] | 0.66 in | 0.58 - 0.93 " |
| Length - Overall [x] | 16.76 mm | 14.73 - 18.8 mm |
| Length - Pin | - | 0.47 in |
| Length - Pin | - | 11.94 mm |
| Length - Ring Center to Termination | - | 0.25 in |
| Length - Ring Center to Termination | - | 6.35 mm |
| Length - Ring Center to Termination | - | 0.4 in |
| Length - Ring Center to Termination | - | 10.16 mm |
| Length - Termination | - | 6.35 mm |
| Length - Termination | - | 0.25 " |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle |
| Number of Wire Entries | - | 2 |
| Pin Diameter | - | 0.08 in |
| Pin Diameter | - | 2.03 mm |
| Stud/Tab Size | - | 8 Stud |
| Stud/Tab Size | - | 0.25 - 10 Stud |
| Tab Thickness | 0.032 in | 0.02 - 0.032 " |
| Tab Thickness | 0.81 mm | 0.51 - 0.81 mm |
| Tab Width | 6.35 mm | 4.75 - 6.35 mm |
| Tab Width | 0.25 in | 0.187 - 0.25 in |
| Terminal Type | Standard | Flanged, Butt Splice, Inline, Individual Openings, Snap, Spring, Flag, Angled - 90°, Standard, Circular |
| Termination | Crimp | Crimp |
| Thickness | - | 0.03 in |
| Thickness | - | 0.76 mm |
| Width - Outer Edges | - | 0.25 - 0.56 " |
| Width - Outer Edges | - | 6.35 - 14.22 mm |
| Width - Outer Edges | - | 7.87 mm |
MU14 Series
CONN SPADE TERM 14-16AWG #8
| Part | Length - Ring Center to Termination [x] | Length - Ring Center to Termination [x] | Length - Termination | Length - Termination [x] | Stud/Tab Size | Terminal Type | Termination | Length - Overall [x] | Length - Overall [x] | Contact Material | Mounting Type | Contact Finish | Insulation | Features | Number of Wire Entries | Color | Width - Outer Edges [y] | Width - Outer Edges [y] | Length - Ring Center to Termination | Length - Ring Center to Termination | Stud/Tab Size | Length - Overall | Length - Overall | Tab Thickness | Tab Thickness | Tab Width | Tab Width | Gender | Thickness | Thickness | Width - Outer Edges | Pin Diameter [diameter] | Pin Diameter [diameter] | Length - Pin [x] | Length - Pin [x] | Diameter - Barrel ID [diameter] | Diameter - Barrel ID [diameter] | Insulation Diameter [diameter] | Insulation Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
0.25 in | 6.35 mm | 6.35 mm | 0.25 " | 8 Stud | Flanged | Crimp | 0.65 " | 16.5 mm | Copper, ETP | Free Hanging (In-Line) | Tin | Non-Insulated | Butted Seam | ||||||||||||||||||||||||||
Butt Splice, Individual Openings, Inline | Crimp | Fully Insulated | 2 | Blue | |||||||||||||||||||||||||||||||||||
6.35 mm | 0.25 " | Snap, Spring | Crimp | Copper, ETP | Free Hanging (In-Line) | Tin | Non-Insulated | Butted Seam | 0.43 " | 10.92 mm | 0.4 in | 10.16 mm | 0.25 Stud | 0.9 in | 22.86 mm | ||||||||||||||||||||||||
Angled - 90°, Flag | Crimp | Brass | Free Hanging (In-Line), Right Angle | Tin | Non-Insulated | Butted Seam | 0.02 " | 0.51 mm | 4.75 mm | 0.187 in | Female | ||||||||||||||||||||||||||||
Standard | Crimp | 0.58 in | 14.73 mm | Steel | Free Hanging (In-Line) | Nickel | Non-Insulated | Butted Seam | 0.02 " | 0.51 mm | 4.75 mm | 0.187 in | Female | ||||||||||||||||||||||||||
Circular | Crimp | 0.93 in | Steel | Free Hanging (In-Line) | Nickel | Non-Insulated | 0.56 in | 14.22 mm | 0.25 Stud | 23.62 mm | 0.03 in | 0.76 mm | |||||||||||||||||||||||||||
Standard | Crimp | 0.58 in | 14.73 mm | Brass | Free Hanging (In-Line) | Tin | Non-Insulated | Butted Seam | 0.02 " | 0.51 mm | 4.75 mm | 0.187 in | Female | ||||||||||||||||||||||||||
3M MU14BCX | Butt Splice, Individual Openings, Inline | Crimp | Non-Insulated | 2 | |||||||||||||||||||||||||||||||||||
Standard | Crimp | 0.66 in | 16.76 mm | Brass | Free Hanging (In-Line) | Tin | Non-Insulated | Butted Seam | 0.032 in | 0.81 mm | 6.35 mm | 0.25 in | Female | ||||||||||||||||||||||||||
0.25 in | 6.35 mm | 6.35 mm | 0.25 " | Snap, Spring | Crimp | 0.68 in | 17.27 mm | Copper, ETP | Free Hanging (In-Line) | Tin | Non-Insulated | 0.32 in | 8.13 mm | 10 Stud |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
MU14 Series
0.250" (6.35mm) Quick Connect Female 14-16 AWG Crimp Connector Non-Insulated
