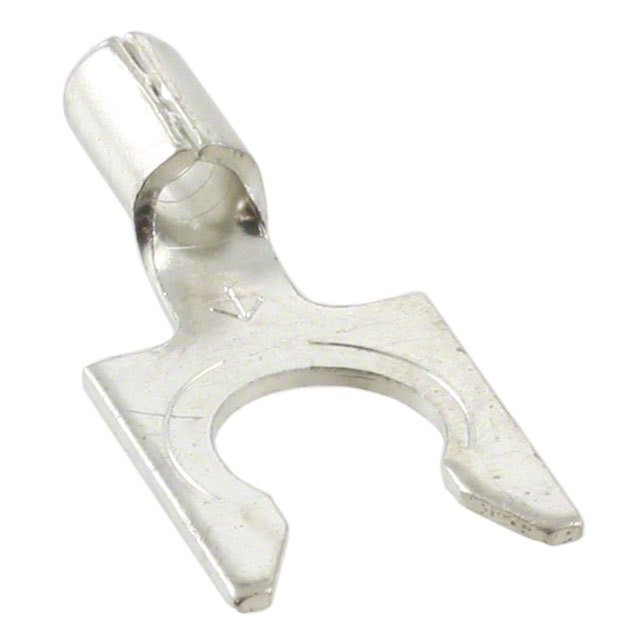

MU14-14FLK

Active

CONN SPADE TERM 14-16AWG #1/4

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MU14-14FLK

Active

CONN SPADE TERM 14-16AWG #1/4

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.67
		10	$ 0.59
		25	$ 0.54
		50	$ 0.50
		100	$ 0.48
		250	$ 0.44
		500	$ 0.42
		1000	$ 0.35
		3000	$ 0.31

Description

General part information

MU14 Series

1/4 Stud Spade Terminal Connector Crimp 14-16 AWG

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MU14-14FLK	MU14 Series

Color	-	Blue
Contact Finish	Tin	Tin, Nickel
Contact Material	ETP, Copper	ETP, Copper, Brass, Steel
Diameter - Barrel ID	-	0.09 "
Diameter - Barrel ID	-	2.29 mm
Features	Butted Seam	Butted Seam
Gender	-	Female, Male
Insulation	Non-Insulated	Non-Insulated, Fully Insulated
Insulation Diameter	-	0.08 in
Insulation Diameter	-	2.03 mm
Length - Overall	0.9 in	0.9 in
Length - Overall	22.86 mm	22.86 - 23.62 mm
Length - Overall	-	0.58 - 0.93 "
Length - Overall	-	14.73 - 18.8 mm
Length - Pin	-	0.47 in
Length - Pin	-	11.94 mm
Length - Ring Center to Termination	0.4 in	0.4 in
Length - Ring Center to Termination	10.16 mm	10.16 mm
Length - Ring Center to Termination	-	0.25 in
Length - Ring Center to Termination	-	6.35 mm
Length - Termination	6.35 mm	6.35 mm
Length - Termination [x]	0.25 "	0.25 "
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line), Right Angle
Number of Wire Entries	-	2
Pin Diameter	-	0.08 in
Pin Diameter	-	2.03 mm
Stud/Tab Size	0.25 Stud	0.25 - 10 Stud
Stud/Tab Size	-	8 Stud
Tab Thickness	-	0.02 - 0.032 "
Tab Thickness	-	0.51 - 0.81 mm
Tab Width	-	4.75 - 6.35 mm
Tab Width	-	0.187 - 0.25 in
Terminal Type	Snap, Spring	Flanged, Butt Splice, Inline, Individual Openings, Snap, Spring, Flag, Angled - 90°, Standard, Circular
Termination	Crimp	Crimp
Thickness	-	0.03 in
Thickness	-	0.76 mm
Width - Outer Edges	-	7.87 mm
Width - Outer Edges [y]	0.43 "	0.25 - 0.56 "
Width - Outer Edges [y]	10.92 mm	6.35 - 14.22 mm

MU14 Series

CONN SPADE TERM 14-16AWG #8

Part	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Length - Termination	Length - Termination [x]	Stud/Tab Size	Terminal Type	Termination	Length - Overall [x]	Length - Overall [x]	Contact Material	Mounting Type	Contact Finish	Insulation	Features	Number of Wire Entries	Color	Width - Outer Edges [y]	Width - Outer Edges [y]	Length - Ring Center to Termination	Length - Ring Center to Termination	Stud/Tab Size	Length - Overall	Length - Overall	Tab Thickness	Tab Thickness	Tab Width	Tab Width	Gender	Thickness	Thickness
3M MU14-8FFBK	0.25 in	6.35 mm	6.35 mm	0.25 "	8 Stud	Flanged	Crimp	0.65 "	16.5 mm	Copper, ETP	Free Hanging (In-Line)	Tin	Non-Insulated	Butted Seam
3M MU14BCHTX-BOTTLE						Butt Splice, Individual Openings, Inline	Crimp						Fully Insulated		2	Blue
3M MU14-14FLK			6.35 mm	0.25 "		Snap, Spring	Crimp			Copper, ETP	Free Hanging (In-Line)	Tin	Non-Insulated	Butted Seam			0.43 "	10.92 mm	0.4 in	10.16 mm	0.25 Stud	0.9 in	22.86 mm
3M MU14-187DF/FLAGX-BOTTLE						Angled - 90°, Flag	Crimp			Brass	Free Hanging (In-Line), Right Angle	Tin	Non-Insulated	Butted Seam										0.02 "	0.51 mm	4.75 mm	0.187 in	Female
3M MU14-187DFHTK						Standard	Crimp	0.58 in	14.73 mm	Steel	Free Hanging (In-Line)	Nickel	Non-Insulated	Butted Seam										0.02 "	0.51 mm	4.75 mm	0.187 in	Female
3M MU14-14RHTK						Circular	Crimp	0.93 in		Steel	Free Hanging (In-Line)	Nickel	Non-Insulated				0.56 in	14.22 mm			0.25 Stud		23.62 mm						0.03 in	0.76 mm
3M MU14-187DFK						Standard	Crimp	0.58 in	14.73 mm	Brass	Free Hanging (In-Line)	Tin	Non-Insulated	Butted Seam										0.02 "	0.51 mm	4.75 mm	0.187 in	Female
3M MU14BCX						Butt Splice, Individual Openings, Inline	Crimp						Non-Insulated		2
3M MU14-250DFX						Standard	Crimp	0.66 in	16.76 mm	Brass	Free Hanging (In-Line)	Tin	Non-Insulated	Butted Seam										0.032 in	0.81 mm	6.35 mm	0.25 in	Female
3M MU14-10FLX-BOTTLE	0.25 in	6.35 mm	6.35 mm	0.25 "		Snap, Spring	Crimp	0.68 in	17.27 mm	Copper, ETP	Free Hanging (In-Line)	Tin	Non-Insulated				0.32 in	8.13 mm			10 Stud
