UB16NKG01N-A

Active

NKK Switches

LOW PROFILE PUSHBUTTON/NON ILLUM

Search across all available documentation for this part.

Active

NKK Switches

LOW PROFILE PUSHBUTTON/NON ILLUM

Technical Specifications

Parameters and characteristics for this part

Part	Mechanical Life	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Illumination Voltage (Nominal)	Type	Electrical Life	Illumination Type, Color	Circuit	Termination Style	Actuator Marking	Actuator Type	Current Rating (Amps)	Switch Function	Color - Actuator/Cap	Voltage Rating - DC	Mounting Type	Voltage Rating - AC	Features	Operating Temperature [Max]	Operating Temperature [Min]
NKK Switches UB16NKG015F-JF	200000 Cycles	22.4 mm	16.2 mm	2.1 VDC	Illuminated Standard	200000 Cycles	Green LED	SPDT	Solder Lug	No Marking	Rectangular Button	0.4 VA	On-On	Clear	28 V	Panel Mount Snap-In	28 V	Process Sealed	50 °C	-25 °C
NKK Switches UB16NKG015C	200000 Cycles	22.4 mm	16.2 mm	1.85 VDC	Illuminated Standard	200000 Cycles	LED Red	SPDT	Solder Lug	No Marking	Plunger for Cap	0.4 VA	On-On		28 V	Panel Mount Snap-In	28 V	Process Sealed	50 °C	-25 °C
NKK Switches UB16NKG015D	200000 Cycles	22.4 mm	16.2 mm	2 VDC	Illuminated Standard	200000 Cycles	Amber LED	SPDT	Solder Lug	No Marking	Plunger for Cap	0.4 VA	On-On		28 V	Panel Mount Snap-In	28 V	Process Sealed	50 °C	-25 °C
NKK Switches UB16NKG01N-A	200000 Cycles	22.4 mm	16.2 mm		Standard	200000 Cycles		SPDT	Solder Lug	No Marking	Rectangular Button	0.4 VA	On-On	Black	28 V	Panel Mount Snap-In	28 V	Process Sealed	70 °C	-25 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

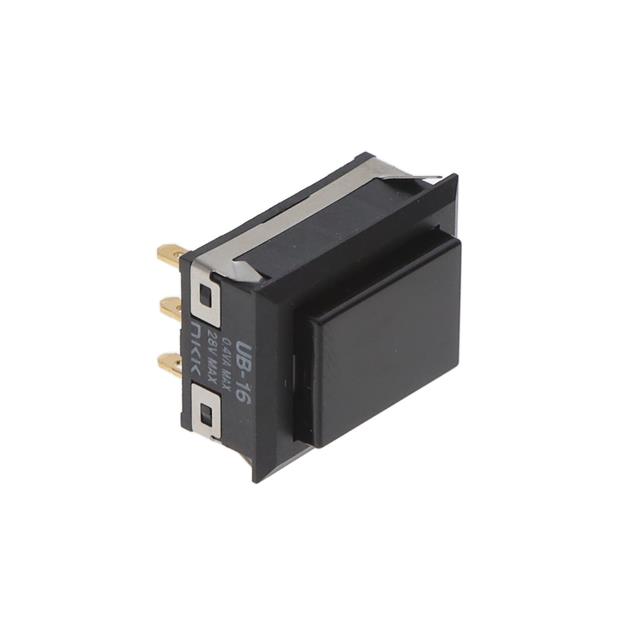

Pushbutton Switch SPDT Standard Panel Mount, Snap-In
