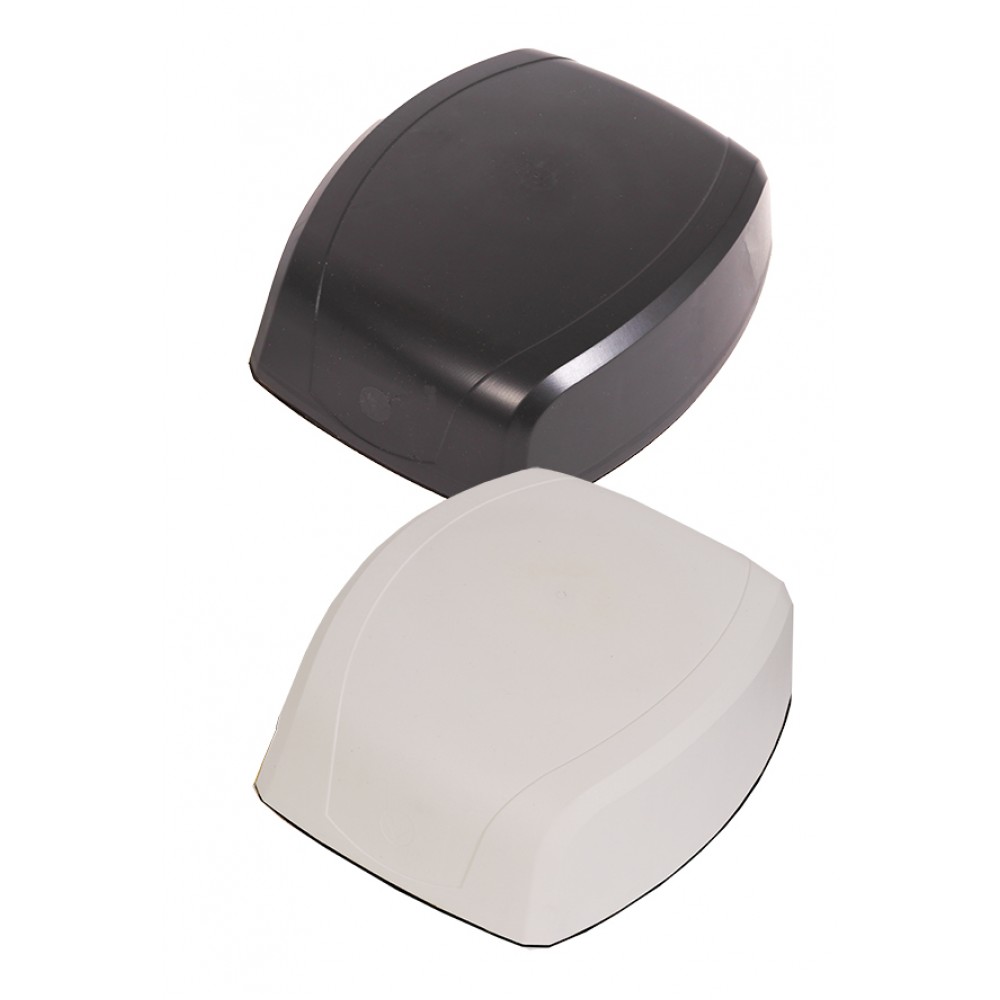

132000285

Active

Amphenol Procom

4X4 MIMO 4G/5G 617-960 MHZ 1710-

Search across all available documentation for this part.

Active

Amphenol Procom

4X4 MIMO 4G/5G 617-960 MHZ 1710-

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	132000285	132000 Series

Accessory Type	-	Cable
Antenna Type	Module	Module
Applications	2G, 4G, Galileo, GLONASS, GPS, LTE, 3G, 5G, GNSS, Beidou	2G, 4G, Galileo, GLONASS, GPS, LTE, 3G, 5G, GNSS, Beidou
Features	LNA	LNA
For Use With/Related Products	-	132000269, 130002476
Frequency (Center/Band)	788.5 MHz, 1.584 GHz, 2.437 GHz, 2.755 GHz, 6.05 GHz	1.575 - 788.5 MHz
Frequency Group	Wide Band	Wide Band
Frequency Range [Max]	2.485 GHz, 7.2 GHz, 960 MHz, 3.8 GHz, 1.609 GHz	1.609 - 960 GHz
Frequency Range [Min]	4.9 GHz, 1.559 GHz, 617 MHz, 1.71 GHz, 2.39 GHz	1.559 - 617 GHz
Gain	3 dBi, 7 dBi	3 - 7 dBi
Height (Max) [Max]	69 mm	65.7 - 69 mm
Height (Max) [Max]	2.717 in	2.587 - 2.717 in
Ingress Protection	IP69K	IP69K, IP67
Mounting Type	Surface Mount	Surface Mount
Number of Bands	-	6
Number of Bands [custom]	5	5
Power - Max [Max]	25 W	25 - 100 W
RF Family/Standard	Cellular, Navigation	Cellular, Navigation
VSWR	2, 2.5	2 - 2.5

PROFIN PLUS CABLE KIT

Part	For Use With/Related Products	Accessory Type	Antenna Type	Ingress Protection	Frequency (Center/Band)	Frequency Group	Number of Bands [custom]	Frequency Range [Max]	Frequency Range [Min]	Gain	Features	Height (Max) [Max]	Height (Max) [Max]	Power - Max [Max]	RF Family/Standard	Mounting Type	Applications	VSWR	Number of Bands
Amphenol Procom 132000270	130002476, 132000269	Cable
Amphenol Procom 132000285			Module	IP69K	1.584 GHz, 2.437 GHz, 2.755 GHz, 6.05 GHz, 788.5 MHz	Wide Band	5	1.609 GHz, 2.485 GHz, 3.8 GHz, 7.2 GHz, 960 MHz	1.559 GHz, 1.71 GHz, 2.39 GHz, 4.9 GHz, 617 MHz	3 dBi, 7 dBi	LNA	69 mm	2.717 in	25 W	Cellular, Navigation	Surface Mount	2G, 3G, 4G, 5G, Beidou, Galileo, GLONASS, GNSS, GPS, LTE	2, 2.5
Amphenol Procom 132000269			Module	IP67	1.575 GHz, 1.584 GHz, 2.45 GHz, 2.755 GHz, 5.5 GHz, 788.5 MHz	Wide Band		1.609 GHz, 2.5 GHz, 3.8 GHz, 6 GHz, 960 MHz	1.559 GHz, 1.71 GHz, 2.4 GHz, 5 GHz, 617 MHz	4 dBi, 6 dB, 7 dBi		65.7 mm	2.587 in	100 W	Cellular		2G, 3G, 4G, 5G, GNSS, GPS, LTE	2, 2.2	6

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 335.19

General part information

RF ANTENNA 2G, 3G, 4G, 5G, BeiDou, Galileo, GLONASS, GNSS, GPS, LTE Module SMA Male Surface Mount
