132000270

Active

Amphenol Procom

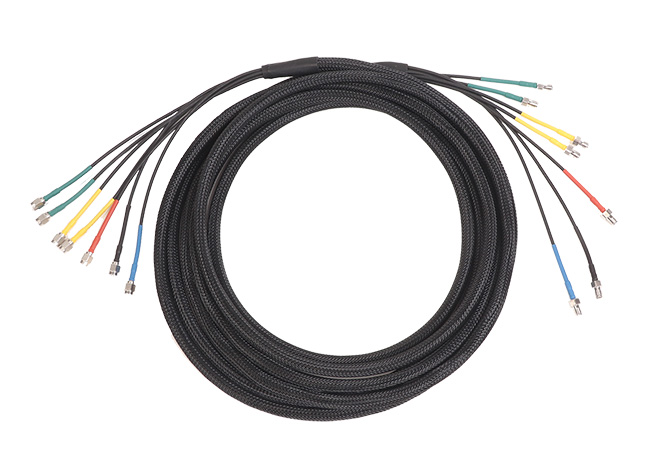

PROFIN PLUS CABLE KIT

Search across all available documentation for this part.

Active

Amphenol Procom

PROFIN PLUS CABLE KIT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 271.18

General part information

PROFIN PLUS CABLE KIT

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	132000270	132000 Series

Accessory Type	Cable	Cable
Antenna Type	-	Module
Applications	-	2G, 4G, Galileo, GLONASS, GPS, LTE, 3G, 5G, GNSS, Beidou
Features	-	LNA
For Use With/Related Products	132000269, 130002476	132000269, 130002476
Frequency (Center/Band)	-	1.575 - 788.5 MHz
Frequency Group	-	Wide Band
Frequency Range	-	1.609 - 960 GHz
Frequency Range	-	1.559 - 617 GHz
Gain	-	3 - 7 dBi
Height (Max)	-	65.7 - 69 mm
Height (Max)	-	2.587 - 2.717 in
Ingress Protection	-	IP69K, IP67
Mounting Type	-	Surface Mount
Number of Bands	-	5
Number of Bands	-	6
Power - Max	-	25 - 100 W
RF Family/Standard	-	Cellular, Navigation
VSWR	-	2 - 2.5

PROFIN PLUS CABLE KIT

Part	For Use With/Related Products	Accessory Type	Antenna Type	Ingress Protection	Frequency (Center/Band)	Frequency Group	Number of Bands [custom]	Frequency Range [Max]	Frequency Range [Min]	Gain	Features	Height (Max) [Max]	Height (Max) [Max]	Power - Max [Max]	RF Family/Standard	Mounting Type	Applications	VSWR	Number of Bands
Amphenol Procom 132000270	130002476, 132000269	Cable
Amphenol Procom 132000285			Module	IP69K	1.584 GHz, 2.437 GHz, 2.755 GHz, 6.05 GHz, 788.5 MHz	Wide Band	5	1.609 GHz, 2.485 GHz, 3.8 GHz, 7.2 GHz, 960 MHz	1.559 GHz, 1.71 GHz, 2.39 GHz, 4.9 GHz, 617 MHz	3 dBi, 7 dBi	LNA	69 mm	2.717 in	25 W	Cellular, Navigation	Surface Mount	2G, 3G, 4G, 5G, Beidou, Galileo, GLONASS, GNSS, GPS, LTE	2, 2.5
Amphenol Procom 132000269			Module	IP67	1.575 GHz, 1.584 GHz, 2.45 GHz, 2.755 GHz, 5.5 GHz, 788.5 MHz	Wide Band		1.609 GHz, 2.5 GHz, 3.8 GHz, 6 GHz, 960 MHz	1.559 GHz, 1.71 GHz, 2.4 GHz, 5 GHz, 617 MHz	4 dBi, 6 dB, 7 dBi		65.7 mm	2.587 in	100 W	Cellular		2G, 3G, 4G, 5G, GNSS, GPS, LTE	2, 2.2	6
