123082A 0101000

Active

Belden Inc.

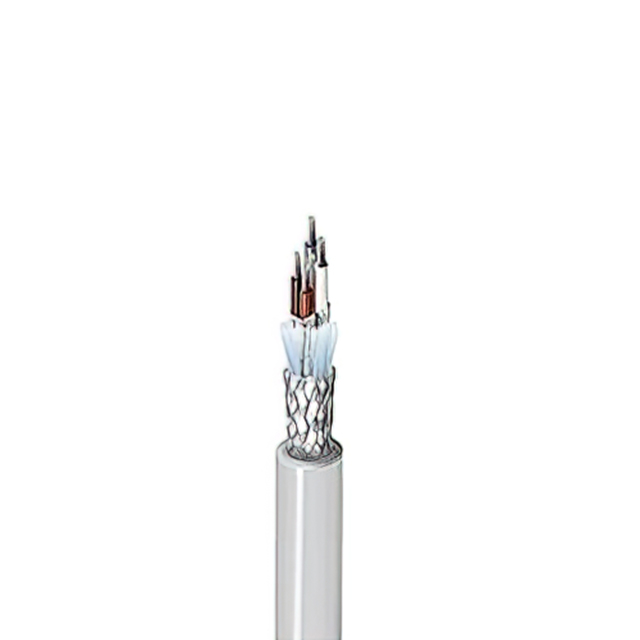

MULTI-PAIR 4COND 15/18AWG 1000'

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 4COND 15/18AWG 1000'

Technical Specifications

Parameters and characteristics for this part

Specification	123082A 0101000

Cable Type	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC), Foam Polyethylene (FPE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19 Strands
Conductor Strand [custom]	19
Conductor Strand [custom]	27 AWG
Conductor Strand [custom]	30 AWG
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.783 "
Jacket (Insulation) Diameter [diameter]	19.89 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.27 mm
Jacket (Insulation) Thickness	0.05 in
Jacket Color	Black
Length	1000 ft
Length	304.8 m
Number of Conductors	4
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Voltage	300 V
Wire Gauge	15 AWG, 18 AWG

MULTI-PAIR 4COND 15/18AWG 1000'

Part	Number of Conductors	Jacket Color	Wire Gauge	Conductor Material	Voltage	Jacket (Insulation) Material	Shield Coverage	Length	Length	Shield Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Insulation	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Features	Shield Type
Belden Inc. 123082A 0101000	4	Black	15 AWG, 18 AWG	Copper, Tinned	300 V	Poly-Vinyl Chloride (PVC)	100 %	1000 ft	304.8 m	Aluminum	1.27 mm	0.05 in	Foam Polyethylene (FPE), Poly-Vinyl Chloride (PVC)	19 Strands	19	27 AWG	30 AWG	0.783 "	19.89 mm	Multi-Pair	Drain Wire	Foil

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

4 (2 Pair) Conductor Multi-Pair Cable Black 15 AWG, 18 AWG Foil 1000.0' (304.8m)
