B22A1P

Active

NKK Switches

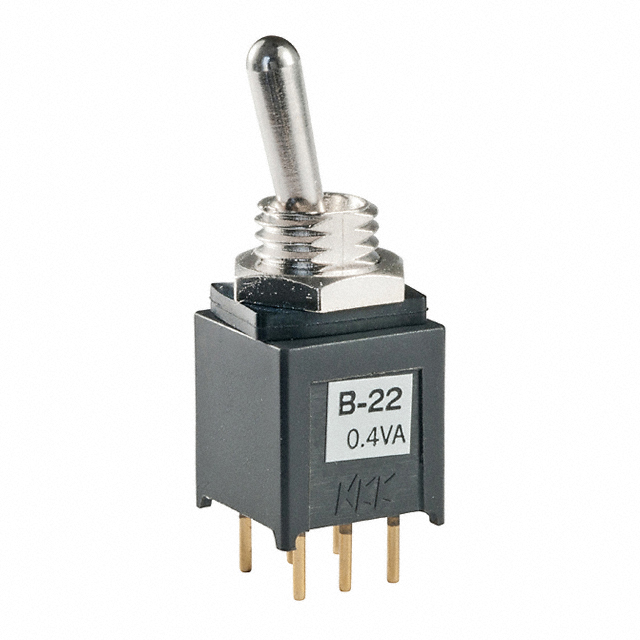

TOGGLE SWITCH, ON-ON, DPDT, NON ILLUMINATED, 100 MA, PANEL MOUNT

Search across all available documentation for this part.

Active

NKK Switches

TOGGLE SWITCH, ON-ON, DPDT, NON ILLUMINATED, 100 MA, PANEL MOUNT

Technical Specifications

Parameters and characteristics for this part

Specification	B22A1P

Actuator Length [x]	8 mm
Actuator Material	Brass, Nickel Plated
Actuator Type	Standard Round
Bushing Thread	M6 x 0.75
Circuit	DPDT
Current Rating (Amps)	0.4 VA
Electrical Life	50000 Cycles
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	6 mm
Switch Function	On-On
Termination Style	PC Pin
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

Part	Actuator Material	Voltage Rating - DC	Actuator Length [x]	Current Rating (Amps)	Actuator Type	Voltage Rating - AC	Electrical Life	Switch Function	Features	Bushing Thread	Operating Temperature [Min]	Operating Temperature [Max]	Panel Cutout Dimensions [diameter]	Termination Style	Circuit	Illumination
NKK Switches B22A1P	Brass Nickel Plated	28 V	8 mm	0.4 VA	Standard Round	28 V	50000 Cycles	On-On	Epoxy Sealed Terminals	M6 x 0.75	-30 ░C	85 °C	6 mm	PC Pin	DPDT	Non-Illuminated
