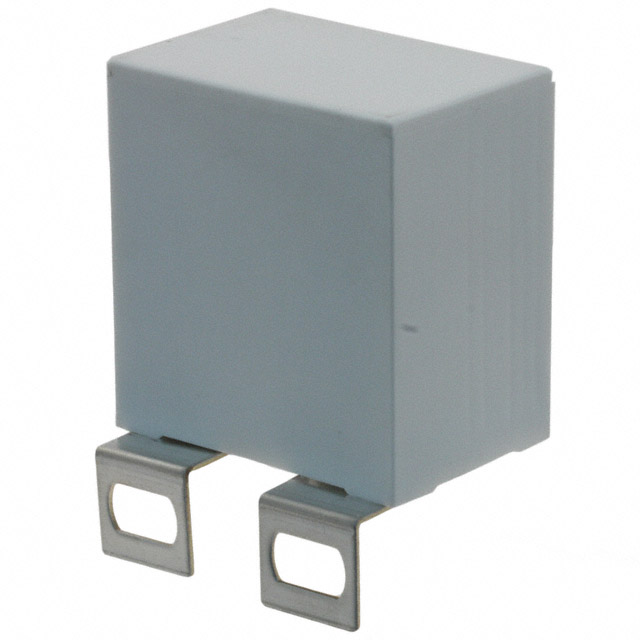

C4BSYBX3330ZALJ

Active

KEMET

CAP FILM 0.33UF 5% 3KVDC SCREW

Search across all available documentation for this part.

Active

KEMET

CAP FILM 0.33UF 5% 3KVDC SCREW

Technical Specifications

Parameters and characteristics for this part

Specification	C4BSYBX3330ZALJ

Applications	DC Link, DC Filtering, Snubber
Capacitance	0.33 µF
Dielectric Material	Metallized, Polypropylene (PP)
ESR (Equivalent Series Resistance)	5.4 mOhms
Height - Seated (Max) [Max] [z]	1.772 in
Height - Seated (Max) [Max] [z]	45 mm
Lead Spacing	25.5 mm
Lead Spacing	1.004 in
Mounting Type	Chassis Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Rectangular Box
Size / Dimension [x]	42 mm
Size / Dimension [x]	1.654 in
Size / Dimension [y]	1.181 in
Size / Dimension [y]	30 mm
Termination	Screw Terminals
Tolerance	5 %
Voltage Rating - AC	750 V
Voltage Rating - DC	3 kV
Voltage Rating - DC	3000 V

Part	Voltage Rating - AC	Capacitance	Lead Spacing	Lead Spacing	Tolerance	ESR (Equivalent Series Resistance)	Dielectric Material	Voltage Rating - DC	Voltage Rating - DC	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Termination	Applications	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]
KEMET C4BSYBX3330ZALJ	750 V	0.33 µF	25.5 mm	1.004 in	5 %	5.4 mOhms	Metallized Polypropylene (PP)	3 kV	3000 V	42 mm	1.181 in	1.654 in	30 mm	1.772 in	45 mm	Chassis Mount	Screw Terminals	DC Filtering DC Link Snubber	Rectangular Box	85 °C	-40 °C
KEMET C4BSYBX3470ZBMJ	750 V	0.47 µF	37 mm	1.457 in	5 %	7.5 mOhm	Metallized Polypropylene (PP)	3 kV	3000 V	57.5 mm	1.181 in	2.264 in	30 mm	1.772 in	45 mm	Chassis Mount	Screw Terminals	DC Filtering DC Link Snubber	Rectangular Box	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

0.33 µF Film Capacitor 750V 3000V (3kV) Polypropylene (PP), Metallized Rectangular Box
