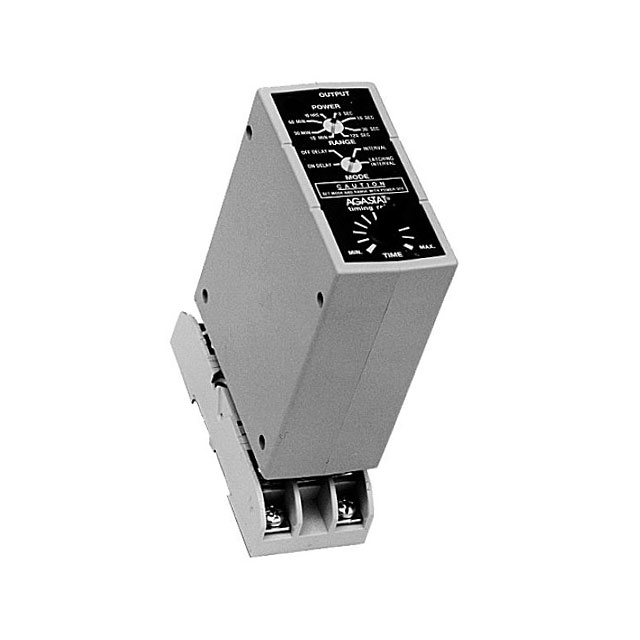

SCFRX902AA

Active

TE Connectivity Aerospace, Defense and Marine

RELAY TIME DELAY 10HR 10A 120V

Search across all available documentation for this part.

Active

TE Connectivity Aerospace, Defense and Marine

RELAY TIME DELAY 10HR 10A 120V

Technical Specifications

Parameters and characteristics for this part

Specification	SCFRX902AA

Circuit	DPDT (2 Form C)
Contact Rating @ Voltage [x]	10 A, 120 VAC
Delay Time [Max]	10 Hrs
Delay Time [Min]	0.1 Sec
Function	Programmable (Multi-Function)
Mounting Type	Socketable
Relay Type	Mechanical Relay
Termination Style	Plug In, 11 Pin (Octal)
Timing Adjustment Method	Hand Dial
Timing Initiate Method	Input Voltage
Voltage - Supply	120 VAC, 125 V

RELAY TIME DELAY 10HR 10A 120V

Part	Termination Style	Mounting Type	Function	Timing Adjustment Method	Timing Initiate Method	Contact Rating @ Voltage [x]	Circuit	Delay Time [Min]	Delay Time [Max]	Relay Type	Voltage - Supply
TE Connectivity Aerospace, Defense and Marine SCFRX902AA	Plug In, 11 Pin (Octal)	Socketable	Programmable (Multi-Function)	Hand Dial	Input Voltage	10 A, 120 VAC	DPDT (2 Form C)	0.1 Sec	10 Hrs	Mechanical Relay	120 VAC, 125 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Programmable (Multi-Function) Time Delay Relay DPDT (2 Form C) 0.1 Sec ~ 10 Hrs Delay 10A @ 120VAC Socketable
