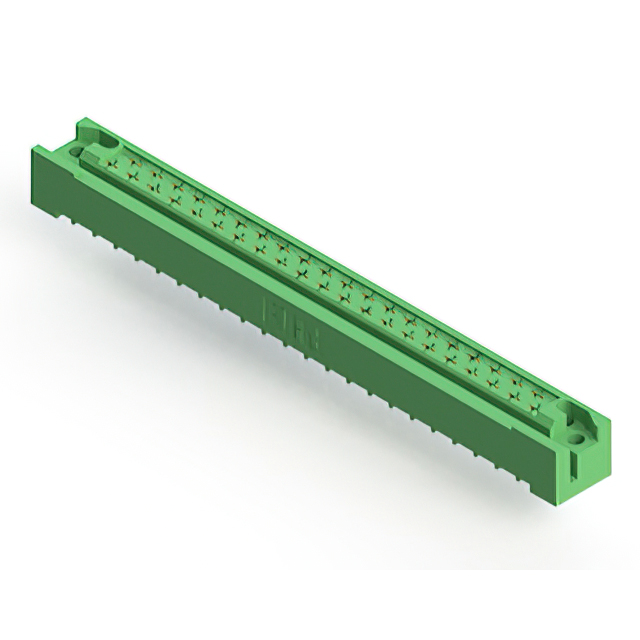

424-041-521-112

Active

EDAC Inc.

CARD EDGE METAL TO METAL 2 PIECE CONNECTORS ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	424-041-521-112

Card Thickness	0.062 in
Card Thickness	1.57 mm
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.25 mm
Flange Feature [diameter]	0.128 "
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole, Panel Mount
Number of Positions	41
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Termination	Solder
Termination Rows	2

424-041 Series

Part	Contact Material	Color	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Contact Finish	Termination	Number of Positions	Pitch [x]	Pitch [x]	Card Type	Termination Rows	Material - Insulation	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Gender	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Card Thickness	Card Thickness
EDAC Inc. 424-041-521-112	Copper Alloy	Green	10 Áin	0.25 Ám	Panel Mount Through Hole	Gold	Solder	41	0.2 in	5.08 mm	Non Specified - Dual Edge	2	Diallyl Phthalate (DAP)	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Female	2	125 °C	-65 ░C	0.062 in	1.57 mm
EDAC Inc. 424-041-525-122	Copper Alloy	Green	10 Áin	0.25 Ám	Panel Mount Through Hole	Gold	Solder	41	0.2 in	5.08 mm	Non Specified - Dual Edge	2	Diallyl Phthalate (DAP)	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Female	2	125 °C	-65 ░C	0.093 in	2.36 mm
EDAC Inc. 424-041-540-122	Copper Alloy	Green	10 Áin	0.25 Ám	Panel Mount Through Hole	Gold	Wire Wrap	41	0.2 in	5.08 mm	Non Specified - Dual Edge	2	Diallyl Phthalate (DAP)	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Female	2	125 °C	-65 ░C	0.093 in	2.36 mm
EDAC Inc. 424-041-502-122	Copper Alloy	Green	10 Áin	0.25 Ám	Panel Mount Through Hole	Gold	Solder	41	0.2 in	5.08 mm	Non Specified - Dual Edge	2	Diallyl Phthalate (DAP)	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Female	2	125 °C	-65 ░C	0.093 in	2.36 mm
EDAC Inc. 424-041-525-112	Copper Alloy	Green	10 Áin	0.25 Ám	Panel Mount Through Hole	Gold	Solder	41	0.2 in	5.08 mm	Non Specified - Dual Edge	2	Diallyl Phthalate (DAP)	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Female	2	125 °C	-65 ░C	0.062 in	1.57 mm
EDAC Inc. 424-041-500-122	Copper Alloy	Green	10 Áin	0.25 Ám	Panel Mount Through Hole	Gold	Solder Eyelet(s)	41	0.2 in	5.08 mm	Non Specified - Dual Edge	2	Diallyl Phthalate (DAP)	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Female	2	125 °C	-65 ░C	0.093 in	2.36 mm
EDAC Inc. 424-041-522-112	Copper Alloy	Green	10 Áin	0.25 Ám	Panel Mount Through Hole	Gold	Solder	41	0.2 in	5.08 mm	Non Specified - Dual Edge	2	Diallyl Phthalate (DAP)	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Female	2	125 °C	-65 ░C	0.062 in	1.57 mm
EDAC Inc. 424-041-520-122	Copper Alloy	Green	10 Áin	0.25 Ám	Panel Mount Through Hole	Gold	Solder	41	0.2 in	5.08 mm	Non Specified - Dual Edge	2	Diallyl Phthalate (DAP)	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Female	2	125 °C	-65 ░C	0.093 in	2.36 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 46.70
Newark	Each	1	$ 54.23
		100	$ 39.17
		250	$ 33.07
		500	$ 23.65
		1000	$ 20.83

Description

General part information

424-041 Series

41 Position Female Connector Non Specified - Dual Edge Gold 0.200" (5.08mm) Green
