SIT9104AI-3015Y

SiTime

MEMS OSC XO 10.0000MHZ CMOS SMD

Search across all available documentation for this part.

SiTime

MEMS OSC XO 10.0000MHZ CMOS SMD

Technical Specifications

Parameters and characteristics for this part

MEMS OSC XO 10.0000MHZ CMOS SMD

Part	Frequency Stability	Package / Case	Base Resonator	Current - Supply (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Function	Type	Frequency	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Output

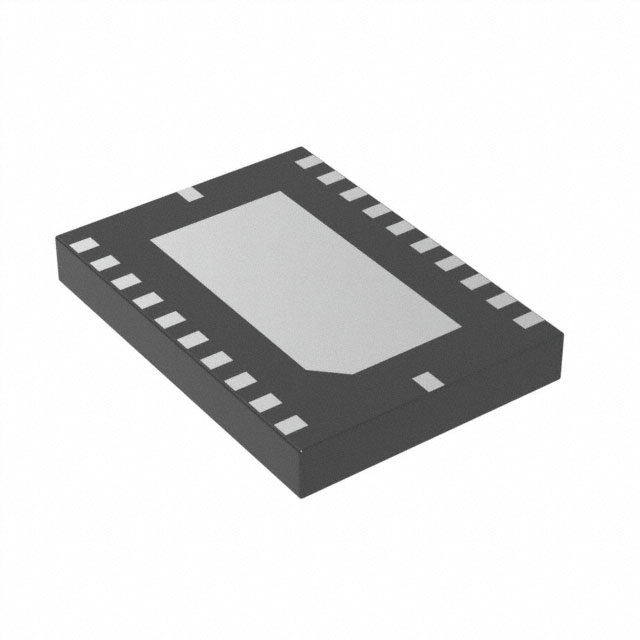

SiTime SIT9104AI-3015Y	50 ppm	22-VQFN Exposed Pad	MEMS	31 mA	85 °C	-40 °C	0.039 "	1 mm	7 mm	5 mm	0.276 "	0.197 "	Enable/Disable	XO (Standard)	10 MHz	3.3 V	1.8 V	Surface Mount	CMOS

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 MHz XO (Standard) CMOS Oscillator 1.8V ~ 3.3V Enable/Disable 22-VQFN Exposed Pad
