Q-1X03D0008.25M

Active

Amphenol Custom Cable

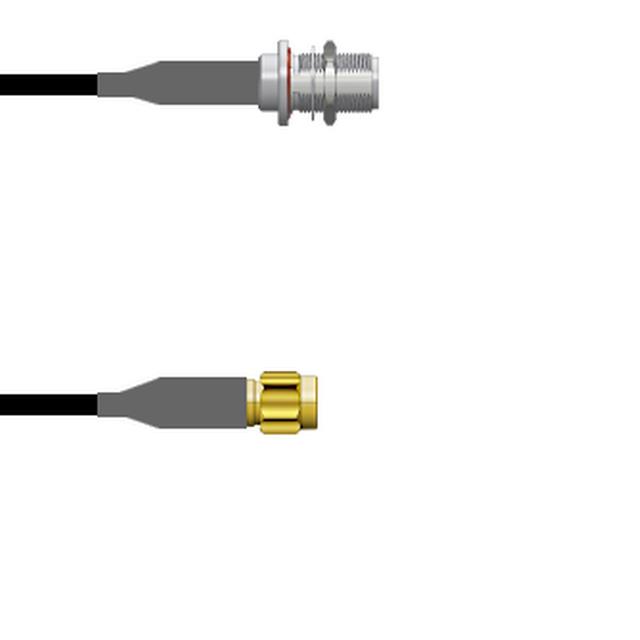

CBL ASSY SMA-NTYPE PL-JK 9.843"

Deep-Dive with AI

Search across all available documentation for this part.

Q-1X03D0008.25M

Active

Amphenol Custom Cable

CBL ASSY SMA-NTYPE PL-JK 9.843"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1X03D0008.25M

1st Connector	SMA Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-58
Color	Black
Features	Shielded
Frequency - Max [Max]	11 GHz
Length [x]	9.843 "
Length [x]	250 mm
Overall Impedance	50 Ohms
Style	SMA to N-Type

Q-1X03D0 Series

Part	Features	Color	Cable Type	2nd Connector	2nd Connector Mounting Type	1st Connector	2nd Connector Mounting Feature	1st Contact Gender	Frequency - Max [Max]	Overall Impedance	1st Connector Mounting Type	Style	2nd Contact Gender	Length	Length	Length	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-1X03D00082.5M	Shielded	Black	RG-58	N-Type Jack	Panel Mount	SMA Plug	Bulkhead - Front Side Nut	Male	11 GHz	50 Ohms	Free Hanging (In-Line)	SMA to N-Type	Female	8.2 '	98.4 in	2.5 m
Amphenol Custom Cable Q-1X03D0008048i	Shielded	Black	RG-58	N-Type Jack	Panel Mount	SMA Plug	Bulkhead - Front Side Nut	Male	11 GHz	50 Ohms	Free Hanging (In-Line)	SMA to N-Type	Female	4 ft	48 in	1200 mm
Amphenol Custom Cable Q-1X03D0008018i	Shielded	Black	RG-58	N-Type Jack	Panel Mount	SMA Plug	Bulkhead - Front Side Nut	Male	11 GHz	50 Ohms	Free Hanging (In-Line)	SMA to N-Type	Female				457.2 mm	457.2 mm
Amphenol Custom Cable Q-1X03D0008072i	Shielded	Black	RG-58	N-Type Jack	Panel Mount	SMA Plug	Bulkhead - Front Side Nut	Male	11 GHz	50 Ohms	Free Hanging (In-Line)	SMA to N-Type	Female	6 ft	72 in	1.8 m
Amphenol Custom Cable Q-1X03D0008001M	Shielded	Black	RG-58	N-Type Jack	Panel Mount	SMA Plug	Bulkhead - Front Side Nut	Male	11 GHz	50 Ohms	Free Hanging (In-Line)	SMA to N-Type	Female	3.3 ft	39.4 in	1 m
Amphenol Custom Cable Q-1X03D0008084i	Shielded	Black	RG-58	N-Type Jack	Panel Mount	SMA Plug	Bulkhead - Front Side Nut	Male	11 GHz	50 Ohms	Free Hanging (In-Line)	SMA to N-Type	Female	7 ft	84 in	2.1 m
Amphenol Custom Cable Q-1X03D0008012i	Shielded	Black	RG-58	N-Type Jack	Panel Mount	SMA Plug	Bulkhead - Front Side Nut	Male	11 GHz	50 Ohms	Free Hanging (In-Line)	SMA to N-Type	Female		12 "	304.8 mm
Amphenol Custom Cable Q-1X03D0008.25M	Shielded	Black	RG-58	N-Type Jack	Panel Mount	SMA Plug	Bulkhead - Front Side Nut	Male	11 GHz	50 Ohms	Free Hanging (In-Line)	SMA to N-Type	Female					250 mm	9.843 "
Amphenol Custom Cable Q-1X03D0008036i	Shielded	Black	RG-58	N-Type Jack	Panel Mount	SMA Plug	Bulkhead - Front Side Nut	Male	11 GHz	50 Ohms	Free Hanging (In-Line)	SMA to N-Type	Female		36 in	91.44 cm
Amphenol Custom Cable Q-1X03D0008009i	Shielded	Black	RG-58	N-Type Jack	Panel Mount	SMA Plug	Bulkhead - Front Side Nut	Male	11 GHz	50 Ohms	Free Hanging (In-Line)	SMA to N-Type	Female		9 "	228.6 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 145.50
		25	$ 142.75
		50	$ 140.00
		100	$ 137.25
		250	$ 134.49

Description

General part information

Q-1X03D0 Series

Cable Assembly Coaxial SMA to N-Type RG-58 9.843" (250.00mm)

Documents

Technical documentation and resources

No documents available
