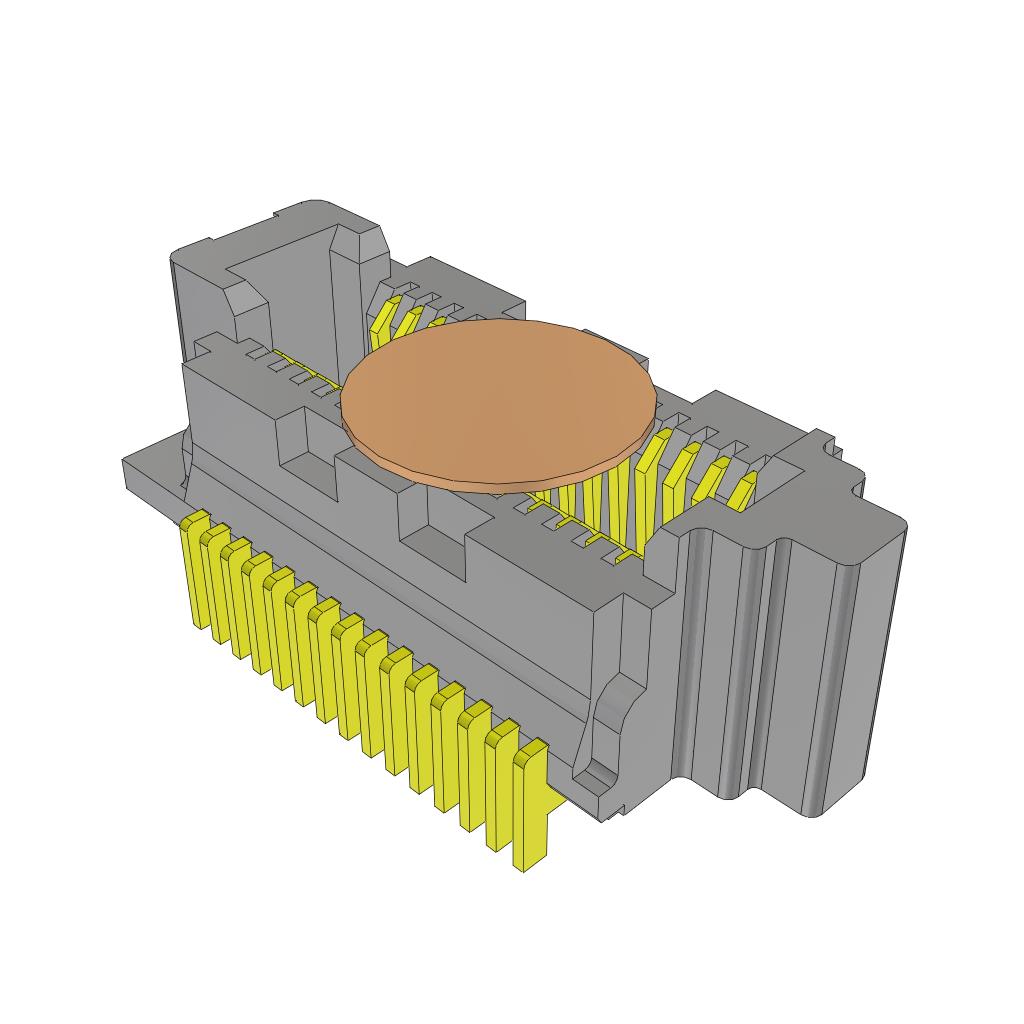

SS4-15-3.50-L-D-K-TR - SS4-15-3.50-L-D-K-TR

SS4-15-3.50-L-D-K-TR

Active
Samtec Inc.

CONN FINE PITCH CONNECTOR SKT 30 POS 0.4MM SOLDER ST SMD T/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetSS4 Series Other Related Documents 03
SS4-15-3.50-L-D-K-TR - SS4-15-3.50-L-D-K-TR

SS4-15-3.50-L-D-K-TR

Active
Samtec Inc.

CONN FINE PITCH CONNECTOR SKT 30 POS 0.4MM SOLDER ST SMD T/R

Deep-Dive with AI

DocumentsDatasheetSS4 Series Other Related Documents 03

Technical Specifications

Parameters and characteristics for this part

SpecificationSS4-15-3.50-L-D-K-TR
Connector TypeSocket, Outer Shroud Contacts
Contact FinishGold
Contact Finish Thickness10 Áin
Contact Finish Thickness0.25 Ám
FeaturesPick and Place
Height Above Board3.35 mm
Height Above Board0.132 in
Mated Stacking Heights6 mm, 5.5 mm, 4.5 mm
Mounting TypeSurface Mount
Number of Positions30
Number of Rows2
Pitch [x]0.016 in
Pitch [x]0.4 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyStrip 1$ 2.93
100$ 2.61
250$ 2.36
500$ 2.06
1000$ 2.01
3000$ 1.65
5000$ 1.61

Description

General part information

SS4-15 Series

30 Position Connector Socket, Outer Shroud Contacts Surface Mount Gold
