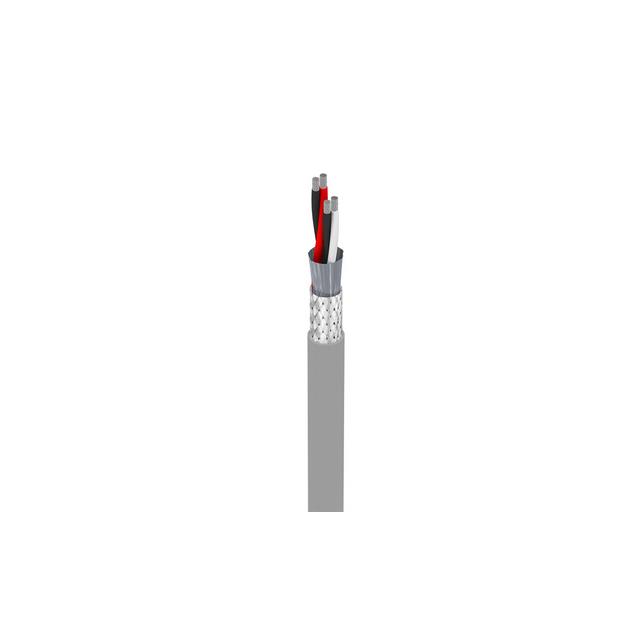

76402TS 0081000
ActiveBelden Inc.
MULTI-PAIR 4CON 28AWG GRAY FEET
Deep-Dive with AI
Search across all available documentation for this part.
76402TS 0081000
ActiveBelden Inc.
MULTI-PAIR 4CON 28AWG GRAY FEET
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 76402TS 0081000 |
|---|---|
| Cable Type | Multi-Pair |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 36 AWG |
| Conductor Strand [custom] | 7 |
| Features | Oil Resistant, Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 5.87 mm |
| Jacket (Insulation) Diameter [diameter] | 0.231 " |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.04 in |
| Jacket (Insulation) Thickness | 1.016 mm |
| Jacket Color | Gray |
| Length | Enter Number of Feet in Order Quantity |
| Number of Conductors | 4 |
| Ratings | UL Style 20006 |
| Shield Coverage | 100 %, 85 % |
| Shield Material | Copper, Tinned, Aluminum |
| Shield Type | Foil, Braid |
| Spool Size | 1000 ft |
| Spool Size | 304.8 m |
| Voltage | 300 V |
| Wire Gauge | 28 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Digi-Spool®, Continuous Spool | 1 | $ 3.70 | |
| 2 | $ 3.52 | |||
| 3 | $ 3.42 | |||
| 5 | $ 3.30 | |||
| 7 | $ 3.22 | |||
| 10 | $ 3.15 | |||
| 25 | $ 2.95 | |||
| 50 | $ 2.80 | |||
| 100 | $ 2.67 | |||
Description
General part information
76402TS Series
4 (2 Pair) Conductor Multi-Pair Cable Gray 28 AWG Foil, Braid Enter Number of Feet in Order Quantity
