T4082102003-000
ActiveTE Connectivity AMP Connectors

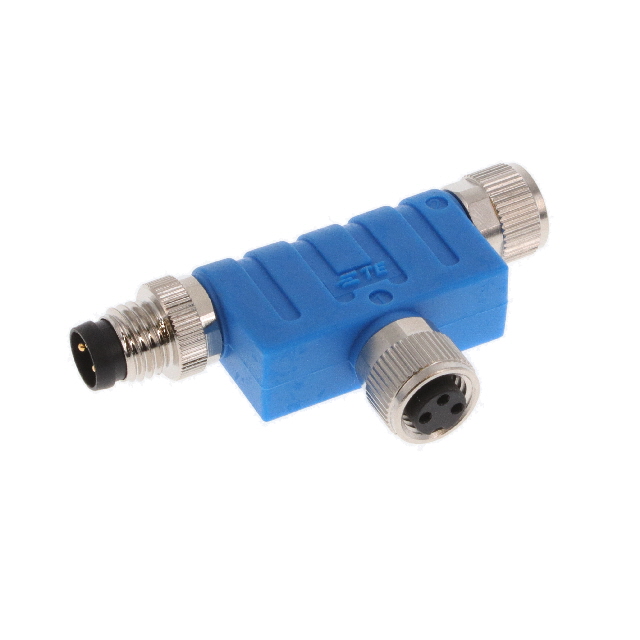

CONN T-ADPT 3P-3P F-F/M INLINE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
T4082102003-000
ActiveTE Connectivity AMP Connectors
CONN T-ADPT 3P-3P F-F/M INLINE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T4082102003-000 | T40821 Series |
|---|---|---|
| Connector Style | Distributor T-Shaped | Distributor T-Shaped |
| Convert From (Adapter End) | Female Sockets | Female Sockets |
| Convert To (Adapter End) | Female Sockets (1), Male Pins (1) | Female Sockets (1), Male Pins (1) |
| Current Rating (Amps) | 3 A | 3 A |
| Features | Coupling Nut | Coupling Nut |
| Housing Color | Blue | Blue |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions (Convert From) | 3 | 3 - 4 |
| Number of Positions (Convert To) | - | 4 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -25 °C | -25 °C |
| Orientation (Convert From) | A | A |
| Orientation (Convert To) | A | A |
| Shell Size - Insert (Convert From) | M8 | M8 |
| Shell Size - Insert (Convert To) [custom] | M8 | M8 |
| Shielding | Unshielded | Unshielded |
| Voltage Rating | 60 VDC | 30 - 60 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.56 | |
| 10 | $ 9.36 | |||
| 25 | $ 9.11 | |||
| 50 | $ 8.76 | |||
T40821 Series
CONN T-ADPT 4P-4P F-F/M INLINE
| Part | Shell Size - Insert (Convert From) | Orientation (Convert From) | Connector Style | Ingress Protection | Orientation (Convert To) | Voltage Rating | Convert To (Adapter End) | Operating Temperature [Min] | Operating Temperature [Max] | Convert From (Adapter End) | Features | Number of Positions (Convert From) | Number of Positions (Convert To) | Housing Color | Shell Size - Insert (Convert To) [custom] | Shielding | Mounting Type | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T4082102004-000 | M8 | A | Distributor T-Shaped | IP67 - Dust Tight, Waterproof | A | 30 VDC | Female Sockets (1), Male Pins (1) | -25 °C | 85 °C | Female Sockets | Coupling Nut | 4 | 4 | Blue | M8 | Unshielded | Free Hanging (In-Line) | 3 A |
TE Connectivity AMP Connectors T4082102003-000 | M8 | A | Distributor T-Shaped | IP67 - Dust Tight, Waterproof | A | 60 VDC | Female Sockets (1), Male Pins (1) | -25 °C | 85 °C | Female Sockets | Coupling Nut | 3 | Blue | M8 | Unshielded | Free Hanging (In-Line) | 3 A |
Description
General part information
T40821 Series
Circular Connector Distributor T-Shaped 3/3 Female Sockets/Female Sockets (1), Male Pins (1) Free Hanging (In-Line)
