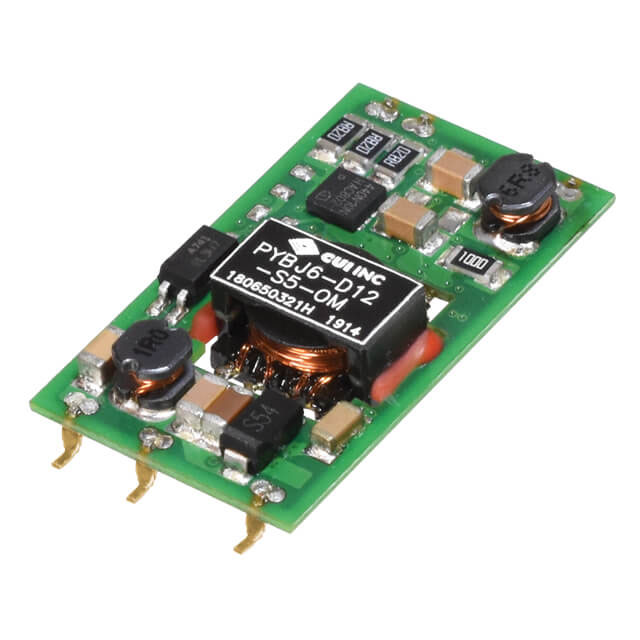

PYBJ6-D24-S3-OM

CUI Inc.

DC DC CONVERTER 3.3V 5W

Deep-Dive with AI

Search across all available documentation for this part.

PYBJ6-D24-S3-OM

CUI Inc.

DC DC CONVERTER 3.3V 5W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PYBJ6-D24-S3-OM

Applications	ITE (Commercial)
Approval Agency	CB Scheme, UL, IEC
Current - Output (Max) [Max]	1.5 A
Efficiency	79 %
Features	OVP, OCP, Remote On/Off, SCP
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	6-SMD Module
Power (Watts)	5 W
Size / Dimension [x]	31.6 mm
Size / Dimension [x]	1.24 in
Size / Dimension [y]	0.71 in
Size / Dimension [y]	18.1 mm
Size / Dimension [z]	6.3 mm
Size / Dimension [z]	6.35 mm
Standard Number	62368-1
Type	Isolated Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	3.3 V

PYBJ6 Series

Part	Current - Output (Max) [Max]	Approval Agency	Type	Applications	Voltage - Input (Max) [Max]	Voltage - Output 1	Features	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Standard Number	Mounting Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Efficiency	Voltage - Isolation	Voltage - Input (Min) [Min]	Number of Outputs	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]
CUI Inc. PYBJ6-D12-S5-M	1.2 A	CB Scheme IEC UL	Isolated Module	ITE (Commercial)	18 V	5 V	OCP OVP Remote On/Off SCP	32.6 mm	7 mm	0.75 in	19.1 mm	0.28 "	1.28 in	62368-1	Surface Mount	6-SMD Module	85 °C	-40 °C	6 W	81 %	1.5 kV	9 V	1
CUI Inc. PYBJ6-D24-S5-D	1.2 A	CB Scheme IEC UL	Isolated Module	ITE (Commercial)	36 V	5 V	OCP OVP Remote On/Off SCP							62368-1	Through Hole	6-DIP Module	85 °C	-40 °C	6 W	83 %	1.5 kV	18 V	1
CUI Inc. PYBJ6-D24-S5-OD	1.2 A	CB Scheme IEC UL	Isolated Module	ITE (Commercial)	36 V	5 V	OCP OVP Remote On/Off SCP	31.6 mm	6.1 mm	0.71 in	18.1 mm	0.24 "	1.24 in	62368-1	Through Hole	6-DIP Module	85 °C	-40 °C	6 W	83 %	1.5 kV	18 V	1
CUI Inc. PYBJ6-D24-S15-OD	400 mA	CB Scheme IEC UL	Isolated Module	ITE (Commercial)	36 V	15 V	OCP OVP Remote On/Off SCP	31.6 mm	6.1 mm	0.71 in	18.1 mm	0.24 "	1.24 in	62368-1	Through Hole	6-DIP Module	85 °C	-40 °C	6 W	86 %	1.5 kV	18 V	1
CUI Inc. PYBJ6-D12-S5-OM	1.2 A	CB Scheme IEC UL	Isolated Module	ITE (Commercial)	18 V	5 V	OCP OVP Remote On/Off SCP	1.24 in	6.35 mm		0.71 in			62368-1	Surface Mount	6-SMD Module	85 °C	-40 °C	6 W	81 %	1.5 kV	9 V	1	31.6 mm	6.3 mm	18.1 mm
CUI Inc. PYBJ6-D24-S3-OM	1.5 A	CB Scheme IEC UL	Isolated Module	ITE (Commercial)	36 V	3.3 V	OCP OVP Remote On/Off SCP	1.24 in	6.35 mm		0.71 in			62368-1	Surface Mount	6-SMD Module	85 °C	-40 °C	5 W	79 %	1.5 kV	18 V	1	31.6 mm	6.3 mm	18.1 mm
CUI Inc. PYBJ6-D12-S15-OD	400 mA	CB Scheme IEC UL	Isolated Module	ITE (Commercial)	18 V	15 V	OCP OVP Remote On/Off SCP	31.6 mm	6.1 mm	0.71 in	18.1 mm	0.24 "	1.24 in	62368-1	Through Hole	6-DIP Module	85 °C	-40 °C	6 W	85 %	1.5 kV	9 V	1
CUI Inc. PYBJ6-D12-S15-OM	400 mA	CB Scheme IEC UL	Isolated Module	ITE (Commercial)	18 V	15 V	OCP OVP Remote On/Off SCP	1.24 in	6.35 mm		0.71 in			62368-1	Surface Mount	6-SMD Module	85 °C	-40 °C	6 W	85 %	1.5 kV	9 V	1	31.6 mm	6.3 mm	18.1 mm
CUI Inc. PYBJ6-D12-S15-M	400 mA	CB Scheme IEC UL	Isolated Module	ITE (Commercial)	18 V	15 V	OCP OVP Remote On/Off SCP	32.6 mm	7 mm	0.75 in	19.1 mm	0.28 "	1.28 in	62368-1	Surface Mount	6-SMD Module	85 °C	-40 °C	6 W	85 %	1.5 kV	9 V	1
CUI Inc. PYBJ6-D24-S3-M	1.5 A	CB Scheme IEC UL	Isolated Module	ITE (Commercial)	36 V	3.3 V	OCP OVP Remote On/Off SCP	32.6 mm	7 mm	0.75 in	19.1 mm	0.28 "	1.28 in	62368-1	Surface Mount	6-SMD Module	85 °C	-40 °C	5 W	79 %	1.5 kV	18 V	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	25	$ 8.74

Description

General part information

PYBJ6 Series

Isolated Module DC DC Converter 1 Output 3.3V 1.5A 18V - 36V Input
