37501 010500

Active

Belden Inc.

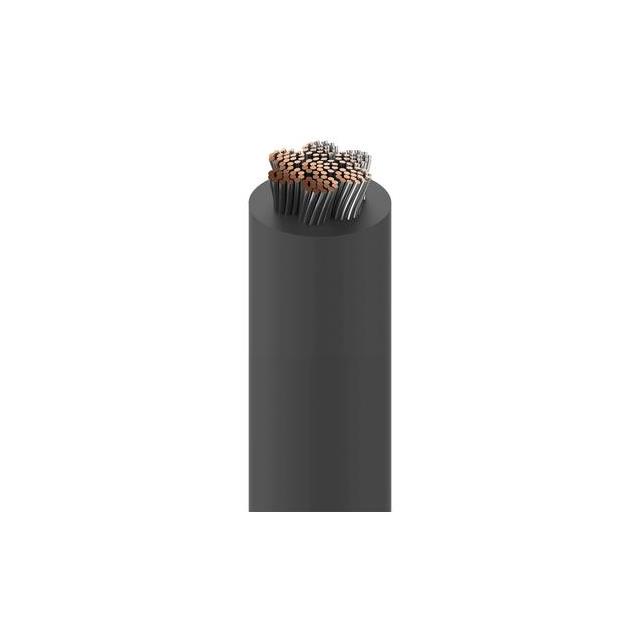

HOOKUP STRND 1AWG 7500V BLK

Search across all available documentation for this part.

Active

Belden Inc.

HOOKUP STRND 1AWG 7500V BLK

Technical Specifications

Parameters and characteristics for this part

Specification	37501 010500

Cable Type	Hook-Up
Conductor Material	Copper, Tinned
Conductor Strand [custom]	24 AWG
Conductor Strand [custom]	210 strands
Features	High Temperature, High Voltage
Jacket (Insulation) Diameter [diameter]	0.638 in
Jacket (Insulation) Diameter [diameter]	16.21 mm
Jacket (Insulation) Material	Ethylene Propylene Terpolymer Rubber (EPDM)
Jacket (Insulation) Thickness	0.131 in
Jacket (Insulation) Thickness	3.33 mm
Jacket Color	Black
Length [x]	500 '
Length [x]	152.4 m
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Ratings	UL Style 3499
Voltage	7.5 kV
Wire Gauge	1 AWG

Part	Ratings	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Jacket Color	Voltage	Wire Gauge	Length [x]	Length [x]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Features	Conductor Material
Belden Inc. 37501 010500	UL Style 3499	Hook-Up	24 AWG	210 strands	0.638 in	16.21 mm	Ethylene Propylene Terpolymer Rubber (EPDM)	Black	7.5 kV	1 AWG	500 '	152.4 m	0.131 in	3.33 mm	-55 °C	150 °C	High Temperature High Voltage	Copper Tinned

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 22.92

General part information

1 AWG Hook-Up Wire 210/24 Black 7500V 500.0' (152.4m)
