221-413/VE00-2500

Active

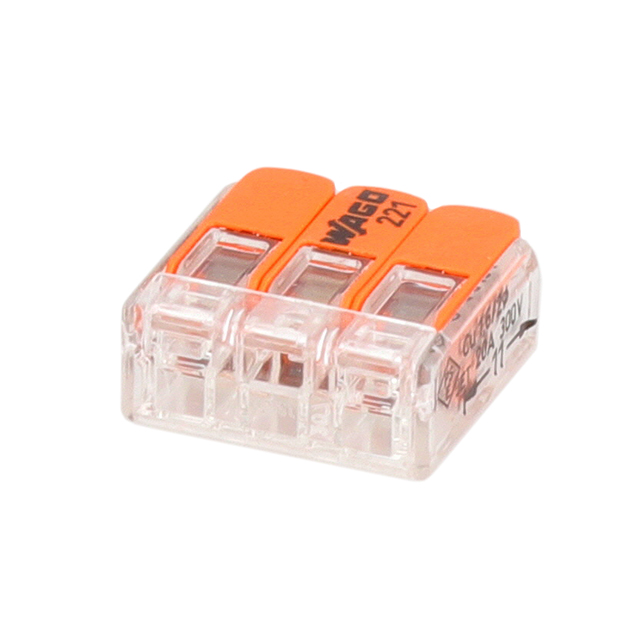

CONN TERMINAL BLOCK F 3 POS SPRING CLAMP 20A BULK

Active

CONN TERMINAL BLOCK F 3 POS SPRING CLAMP 20A BULK

Description

General part information

Terminal Butt Splice, Closed End, Individual Openings Connector Push In 12-24 AWG Transparent - Orange

Parameters and characteristics for this part

Specification	221-413/VE00-2500

Color	Transparent - Orange
Features	Releasable
Insulation	Fully Insulated
Number of Wire Entries	3
Terminal Type	Closed End, Individual Openings, Butt Splice
Termination	Push In
Wire Gauge (AWG) (Max)	24 AWG
Wire Gauge (AWG) (Min)	12 AWG

Part	Termination	Color	Features	Terminal Type	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Number of Wire Entries	Insulation	Wire Gauge	For Use With/Related Products	Accessory Type
WAGO Corporation 221-412/VE00-2500	Push In	Transparent - Orange	Releasable	Butt Splice Closed End Individual Openings	12 AWG	24 AWG	2	Fully Insulated
WAGO Corporation 221-413/VE00-2500	Push In	Transparent - Orange	Releasable	Butt Splice Closed End Individual Openings	12 AWG	24 AWG	3	Fully Insulated
WAGO Corporation 221-612/VE00-1000	Push In	Transparent - Orange	Releasable	Butt Splice Closed End Individual Openings			2	Fully Insulated	10 AWG
WAGO Corporation 221-613/VE00-1000	Push In	Transparent - Orange	Releasable	Butt Splice Closed End Individual Openings	10 AWG	20.5 AWG	3	Fully Insulated
WAGO Corporation 221-615/K194-4045	Push In	Transparent - Orange	Releasable	Butt Splice Closed End Individual Openings	10 AWG	20.5 AWG	5	Fully Insulated
WAGO Corporation 221-500										Splices	Mounting Carrier
WAGO Corporation 221-415/VE00-1000	Push In	Transparent - Orange	Releasable	Butt Splice Closed End Individual Openings	12 AWG	24 AWG	5	Fully Insulated
WAGO Corporation 221-612/K194-4045	Push In	Transparent - Orange	Releasable	Butt Splice Closed End Individual Openings			2	Fully Insulated	10 AWG
WAGO Corporation 221-615/VE00-0500	Push In	Transparent - Orange	Releasable	Butt Splice Closed End Individual Openings	10 AWG	20.5 AWG	5	Fully Insulated
WAGO Corporation 221-613/K194-4045	Push In	Transparent - Orange	Releasable	Butt Splice Closed End Individual Openings	10 AWG	20.5 AWG	3	Fully Insulated
