892-090-556-212

Active

EDAC Inc.

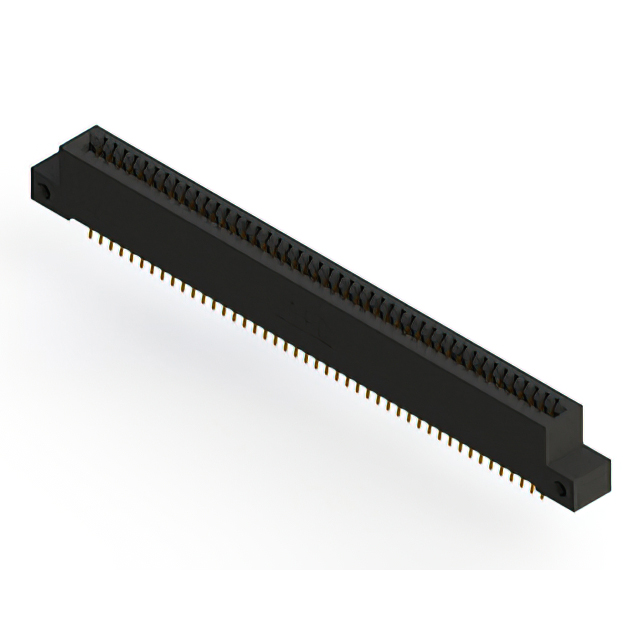

CONN EDGE DUAL FMALE 90POS 0.100

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

892-090-556-212

Active

EDAC Inc.

CONN EDGE DUAL FMALE 90POS 0.100

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	892-090-556-212

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Extender
Flange Feature	Unthreaded, Flush Mount, Side Opening
Flange Feature [diameter]	3.25 mm
Flange Feature [diameter]	0.128 "
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Board Edge, Straddle Mount
Number of Positions	90
Number of Positions/Bay/Row [custom]	45
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder
Termination Rows	2

892-090 Series

...

Part	Card Type	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Termination Rows	Number of Rows	Number of Positions/Bay/Row [custom]	Contact Finish	Contact Material	Contact Type	Pitch [x]	Pitch [x]	Gender	Contact Finish Thickness	Contact Finish Thickness	Features	Mounting Type	Read Out	Material - Insulation	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Color	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions
EDAC Inc. 892-090-560-212	Non Specified - Dual Edge	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	2	2	45	Gold	Copper Alloy	Cantilever	2.54 mm	0.1 in	Female	10 Áin	0.25 Ám	Card Extender	Board Edge Straddle Mount	Dual	Polyphenylene Sulfide (PPS)	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Solder	125 °C	-40 °C	90
EDAC Inc. 892-090-500-204	Non Specified - Dual Edge	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	2	2	45	Gold	Copper Alloy	Cantilever	2.54 mm	0.1 in	Female	10 Áin	0.25 Ám		Through Hole	Dual	Polyphenylene Sulfide (PPS)	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Solder Eyelet(s)	125 °C	-40 °C	90
EDAC Inc. 892-090-520-204	Non Specified - Dual Edge	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	2	2	45	Gold	Copper Alloy	Cantilever	2.54 mm	0.1 in	Female	10 Áin	0.25 Ám		Through Hole	Dual	Polyphenylene Sulfide (PPS)	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Solder	125 °C	-40 °C	90
EDAC Inc. 892-090-521-201	Non Specified - Dual Edge				2	2	45	Gold	Copper Alloy	Cantilever	2.54 mm	0.1 in	Female	10 Áin	0.25 Ám		Through Hole	Dual	Polyphenylene Sulfide (PPS)	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Solder	125 °C	-40 °C	90
EDAC Inc. 892-090-560-207	Non Specified - Dual Edge		Flush Mount M3 Threaded Insert Top Opening		2	2	45	Gold	Copper Alloy	Cantilever	2.54 mm	0.1 in	Female	10 Áin	0.25 Ám	Card Extender	Board Edge Straddle Mount	Dual	Polyphenylene Sulfide (PPS)	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Solder	125 °C	-40 °C	90
EDAC Inc. 892-090-540-202	Non Specified - Dual Edge	3.25 mm	Flush Mount Top Opening Unthreaded	0.128 "	2	2	45	Gold	Copper Alloy	Cantilever	2.54 mm	0.1 in	Female	10 Áin	0.25 Ám		Through Hole	Dual	Polyphenylene Sulfide (PPS)	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Wire Wrap	125 °C	-40 °C	90
EDAC Inc. 892-090-556-212	Non Specified - Dual Edge	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	2	2	45	Gold	Copper Alloy	Cantilever	2.54 mm	0.1 in	Female	10 Áin	0.25 Ám	Card Extender	Board Edge Straddle Mount	Dual	Polyphenylene Sulfide (PPS)	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Solder	125 °C	-40 °C	90
EDAC Inc. 892-090-540-204	Non Specified - Dual Edge	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	2	2	45	Gold	Copper Alloy	Cantilever	2.54 mm	0.1 in	Female	10 Áin	0.25 Ám		Through Hole	Dual	Polyphenylene Sulfide (PPS)	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Wire Wrap	125 °C	-40 °C	90
EDAC Inc. 892-090-521-202	Non Specified - Dual Edge	3.25 mm	Flush Mount Top Opening Unthreaded	0.128 "	2	2	45	Gold	Copper Alloy	Cantilever	2.54 mm	0.1 in	Female	10 Áin	0.25 Ám		Through Hole	Dual	Polyphenylene Sulfide (PPS)	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Solder	125 °C	-40 °C	90
EDAC Inc. 892-090-544-208	Non Specified - Dual Edge		4-40 Flush Mount Threaded Insert Top Opening		2	2	45	Gold	Copper Alloy	Cantilever	2.54 mm	0.1 in	Female	10 Áin	0.25 Ám		Through Hole	Dual	Polyphenylene Sulfide (PPS)	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Wire Wrap	125 °C	-40 °C	90

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 116.12
Newark	Each	1	$ 139.36
		100	$ 103.50
		250	$ 90.41
		500	$ 77.59
		1000	$ 57.63
