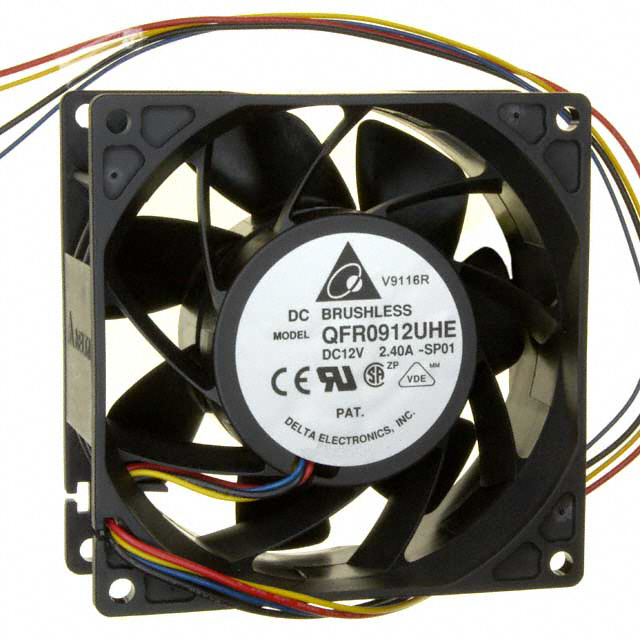

QFR0912UHE-SP01

Obsolete

Delta Electronics

FAN AXIAL 92X38MM 12VDC WIRE

Search across all available documentation for this part.

Obsolete

Delta Electronics

FAN AXIAL 92X38MM 12VDC WIRE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Tubeaxial 12VDC Square - 92mm L x 92mm H Ball 131.8 CFM (3.69m³/min) 4 Wire Leads

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	QFR0912UHE-SP01	QFR0912 Series

Air Flow	131.8 CFM	74.8 - 131.8 CFM
Air Flow	3.69 m³/min	2.09 - 3.69 m³/min
Approval Agency	UL, CE, VDE, CSA	UL, CE, VDE, CSA, cURus
Bearing Type	Ball	Ball
Current Rating (Amps)	1.6 A	1.6 - 600 mA
Fan Type	Tubeaxial	Tubeaxial
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)	Speed Sensor (Tach), Locked Rotor Protection, PWM Control
Lifetime @ Temp.	50000 Hrs	50000 - 70000 Hrs
Material - Blade	Plastic	Plastic
Material - Frame	Plastic	Plastic
Noise	62 dB(A)	45 - 62 dB(A)
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-10 °C	-10 °C
Operating Temperature [Min]	-10 °C	-10 °C
Power (Watts)	19.2 W	4.8 - 19.2 W
RPM	8300 RPM	4200 - 8300 RPM
Static Pressure	365.2 Pa	84.5 - 365.2 Pa
Static Pressure	1.466 in H2O	0.339 - 1.466 in H2O
Termination	4 Wire Leads	3 Wire Leads, 4 Wire Leads
Voltage - Rated	12 VDC	12 VDC
Voltage Range [Max]	13.2 VDC	13.2 VDC
Voltage Range [Min]	8 VDC	8 - 10.8 VDC
Weight	0.43 lb	0.243 - 0.43 lb
Weight	195.04 g	110.22 - 195.04 g
Width [y]	38 mm	25.4 - 38 mm

FAN AXIAL 92X38MM 12VDC WIRE

Part	RPM	Material - Blade	Voltage Range [Max]	Voltage Range [Min]	Static Pressure	Static Pressure	Fan Type	Weight	Weight	Voltage - Rated	Noise	Current Rating (Amps)	Bearing Type	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Power (Watts)	Material - Frame	Approval Agency	Lifetime @ Temp.	Features	Width [y]	Termination	Air Flow	Air Flow
Delta Electronics QFR0912EHE-F00	5700 RPM	Plastic	13.2 VDC	10.8 VDC	0.711 in H2O	177.1 Pa	Tubeaxial	0.43 lb	195.04 g	12 VDC	51.7 dB(A)	600 mA	Ball	70 °C	70 °C	-10 °C	-10 °C	7.2 W	Plastic	CE, CSA, UL, VDE	70000 Hrs	Locked Rotor Protection, Speed Sensor (Tach)	38 mm	3 Wire Leads
Delta Electronics QFR0912DE-F00	8300 RPM	Plastic	13.2 VDC	8 VDC	1.466 in H2O	365.2 Pa	Tubeaxial	0.43 lb	195.04 g	12 VDC	62 dB(A)	1.6 A	Ball	70 °C	70 °C	-10 °C	-10 °C	19.2 W	Plastic	CE, CSA, UL, VDE	50000 Hrs	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)	38 mm	4 Wire Leads	131.8 CFM	3.69 m³/min
Delta Electronics QFR0912UHE-SP01	8300 RPM	Plastic	13.2 VDC	8 VDC	1.466 in H2O	365.2 Pa	Tubeaxial	0.43 lb	195.04 g	12 VDC	62 dB(A)	1.6 A	Ball	70 °C	70 °C	-10 °C	-10 °C	19.2 W	Plastic	CE, CSA, UL, VDE	50000 Hrs	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)	38 mm	4 Wire Leads	131.8 CFM	3.69 m³/min
