TLV2186IDSGT
ActiveTexas Instruments
LOW POWER, RAIL-TO-RAIL INPUT AND OUTPUT, 24-V, ZERO-DRIFT OPERATIONAL AMPLIFIER 8-WSON -40 TO 125
Deep-Dive with AI
Search across all available documentation for this part.
TLV2186IDSGT
ActiveTexas Instruments
LOW POWER, RAIL-TO-RAIL INPUT AND OUTPUT, 24-V, ZERO-DRIFT OPERATIONAL AMPLIFIER 8-WSON -40 TO 125
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TLV2186IDSGT | TLV2186 Series |
|---|---|---|
| Amplifier Type | Zero-Drift | Zero-Drift |
| Current - Input Bias | 100 pA | 100 pA |
| Current - Output / Channel | 20 mA | 20 mA |
| Current - Supply | 90 µA | 90 µA |
| Gain Bandwidth Product | 750 kHz | 750 kHz |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Circuits | 2 | 2 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Type | Rail-to-Rail | Rail-to-Rail |

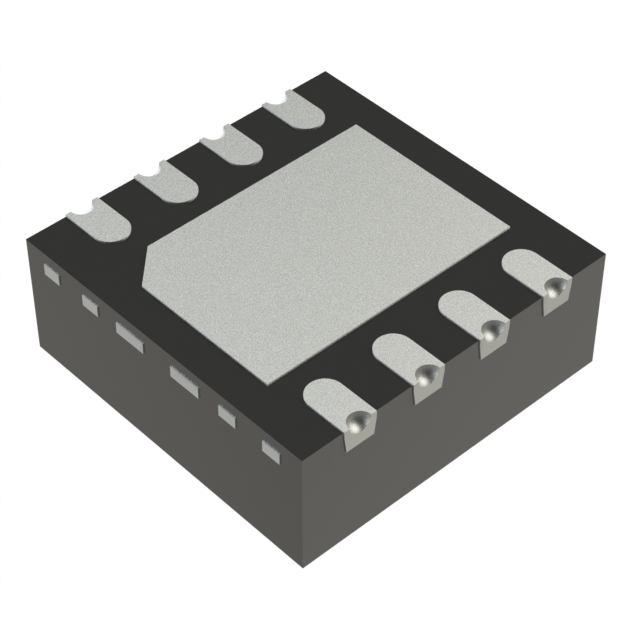

| Package / Case | 8-WFDFN Exposed Pad | 8-WFDFN Exposed Pad, 8-SOIC |
| Package / Case | - | 3.9 mm |
| Supplier Device Package | 8-WSON (2x2) | 8-WSON (2x2), 8-SOIC |
| Voltage - Input Offset | 10 µV | 10 µV |
| Voltage - Supply Span (Max) [Max] | 24 V | 24 V |
| Voltage - Supply Span (Min) [Min] | 4.5 V | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
TLV2186 Series
Low power, rail-to-rail input and output, 24-V, zero-drift operational amplifier
| Part | Output Type | Gain Bandwidth Product | Voltage - Supply Span (Min) [Min] | Current - Supply | Mounting Type | Current - Input Bias | Package / Case | Voltage - Input Offset | Operating Temperature [Min] | Operating Temperature [Max] | Current - Output / Channel | Number of Circuits | Supplier Device Package | Voltage - Supply Span (Max) [Max] | Amplifier Type | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments TLV2186IDSGRThe TLV2186 is a low-power, 24-V, rail-to-rail input and output zero-drift operational amplifier (op amp). The TLV2186 features only 10 µV of offset voltage (typical) and 0.1 µV/°C of offset voltage drift over temperature (typical). This device is a great choice for precision instrumentation, signal measurement, and active filtering applications.
Low quiescent current consumption (90 µA) makes the TLV2186 an excellent option for power-sensitive applications, such as battery-powered instrumentation and portable systems.
Moreover, the high common-mode architecture along with low offset voltage allows for high-side current shunt monitoring at the positive rail. This device also provides robust ESD protection during shipment, handling, and assembly.
The device is specified for operation from –40°C to +125°C. The TLV2186 is offered in WSON-8 and SO-8 packages.
The TLV2186 is a low-power, 24-V, rail-to-rail input and output zero-drift operational amplifier (op amp). The TLV2186 features only 10 µV of offset voltage (typical) and 0.1 µV/°C of offset voltage drift over temperature (typical). This device is a great choice for precision instrumentation, signal measurement, and active filtering applications.
Low quiescent current consumption (90 µA) makes the TLV2186 an excellent option for power-sensitive applications, such as battery-powered instrumentation and portable systems.
Moreover, the high common-mode architecture along with low offset voltage allows for high-side current shunt monitoring at the positive rail. This device also provides robust ESD protection during shipment, handling, and assembly.
The device is specified for operation from –40°C to +125°C. The TLV2186 is offered in WSON-8 and SO-8 packages. | Rail-to-Rail | 750 kHz | 4.5 V | 90 µA | Surface Mount | 100 pA | 8-WFDFN Exposed Pad | 10 µV | -40 °C | 125 °C | 20 mA | 2 | 8-WSON (2x2) | 24 V | Zero-Drift | |
Texas Instruments TLV2186IDRThe TLV2186 is a low-power, 24-V, rail-to-rail input and output zero-drift operational amplifier (op amp). The TLV2186 features only 10 µV of offset voltage (typical) and 0.1 µV/°C of offset voltage drift over temperature (typical). This device is a great choice for precision instrumentation, signal measurement, and active filtering applications.
Low quiescent current consumption (90 µA) makes the TLV2186 an excellent option for power-sensitive applications, such as battery-powered instrumentation and portable systems.
Moreover, the high common-mode architecture along with low offset voltage allows for high-side current shunt monitoring at the positive rail. This device also provides robust ESD protection during shipment, handling, and assembly.
The device is specified for operation from –40°C to +125°C. The TLV2186 is offered in WSON-8 and SO-8 packages.
The TLV2186 is a low-power, 24-V, rail-to-rail input and output zero-drift operational amplifier (op amp). The TLV2186 features only 10 µV of offset voltage (typical) and 0.1 µV/°C of offset voltage drift over temperature (typical). This device is a great choice for precision instrumentation, signal measurement, and active filtering applications.
Low quiescent current consumption (90 µA) makes the TLV2186 an excellent option for power-sensitive applications, such as battery-powered instrumentation and portable systems.
Moreover, the high common-mode architecture along with low offset voltage allows for high-side current shunt monitoring at the positive rail. This device also provides robust ESD protection during shipment, handling, and assembly.
The device is specified for operation from –40°C to +125°C. The TLV2186 is offered in WSON-8 and SO-8 packages. | Rail-to-Rail | 750 kHz | 4.5 V | 90 µA | Surface Mount | 100 pA | 8-SOIC | 10 µV | -40 °C | 125 °C | 20 mA | 2 | 8-SOIC | 24 V | Zero-Drift | 3.9 mm |
Texas Instruments TLV2186IDSGTThe TLV2186 is a low-power, 24-V, rail-to-rail input and output zero-drift operational amplifier (op amp). The TLV2186 features only 10 µV of offset voltage (typical) and 0.1 µV/°C of offset voltage drift over temperature (typical). This device is a great choice for precision instrumentation, signal measurement, and active filtering applications.
Low quiescent current consumption (90 µA) makes the TLV2186 an excellent option for power-sensitive applications, such as battery-powered instrumentation and portable systems.
Moreover, the high common-mode architecture along with low offset voltage allows for high-side current shunt monitoring at the positive rail. This device also provides robust ESD protection during shipment, handling, and assembly.
The device is specified for operation from –40°C to +125°C. The TLV2186 is offered in WSON-8 and SO-8 packages.
The TLV2186 is a low-power, 24-V, rail-to-rail input and output zero-drift operational amplifier (op amp). The TLV2186 features only 10 µV of offset voltage (typical) and 0.1 µV/°C of offset voltage drift over temperature (typical). This device is a great choice for precision instrumentation, signal measurement, and active filtering applications.
Low quiescent current consumption (90 µA) makes the TLV2186 an excellent option for power-sensitive applications, such as battery-powered instrumentation and portable systems.
Moreover, the high common-mode architecture along with low offset voltage allows for high-side current shunt monitoring at the positive rail. This device also provides robust ESD protection during shipment, handling, and assembly.
The device is specified for operation from –40°C to +125°C. The TLV2186 is offered in WSON-8 and SO-8 packages. | Rail-to-Rail | 750 kHz | 4.5 V | 90 µA | Surface Mount | 100 pA | 8-WFDFN Exposed Pad | 10 µV | -40 °C | 125 °C | 20 mA | 2 | 8-WSON (2x2) | 24 V | Zero-Drift |
Description
General part information
TLV2186 Series
The TLV2186 is a low-power, 24-V, rail-to-rail input and output zero-drift operational amplifier (op amp). The TLV2186 features only 10 µV of offset voltage (typical) and 0.1 µV/°C of offset voltage drift over temperature (typical). This device is a great choice for precision instrumentation, signal measurement, and active filtering applications.
Low quiescent current consumption (90 µA) makes the TLV2186 an excellent option for power-sensitive applications, such as battery-powered instrumentation and portable systems.
Moreover, the high common-mode architecture along with low offset voltage allows for high-side current shunt monitoring at the positive rail. This device also provides robust ESD protection during shipment, handling, and assembly.
