Technical Specifications
Parameters and characteristics for this part
| Specification | 1064538-1 |
|---|---|
| 1st Connector | SSMT Jack, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | Cable (Round) |
| Color | Blue |
| Features | Shielded |
| Frequency - Max [Max] | 6000 MHz |
| Length | 7.874 in |
| Length | 200 mm |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | SSMT to Cable |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 10.35 | |
| 10 | $ 9.36 | |||
| 25 | $ 9.11 | |||
| 50 | $ 8.77 | |||
| 100 | $ 8.12 | |||
| 300 | $ 8.07 | |||
| 500 | $ 7.77 | |||
| 1000 | $ 6.93 | |||
1064538 Series
CBL ASSY SSMT JACK 7.874"
| Part | Features | Length | Length | Operating Temperature [Max] | Operating Temperature [Min] | Style | 1st Contact Gender | 1st Connector Mounting Type | Frequency - Max [Max] | Color | Overall Impedance | 1st Connector | 2nd Connector |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1064538-1 | Shielded | 7.874 in | 200 mm | 125 °C | -40 °C | SSMT to Cable | Female | Free Hanging (In-Line) | 6000 MHz | Blue | 50 Ohms | Right Angle, SSMT Jack | Cable (Round) |
Description
General part information
1064538 Series

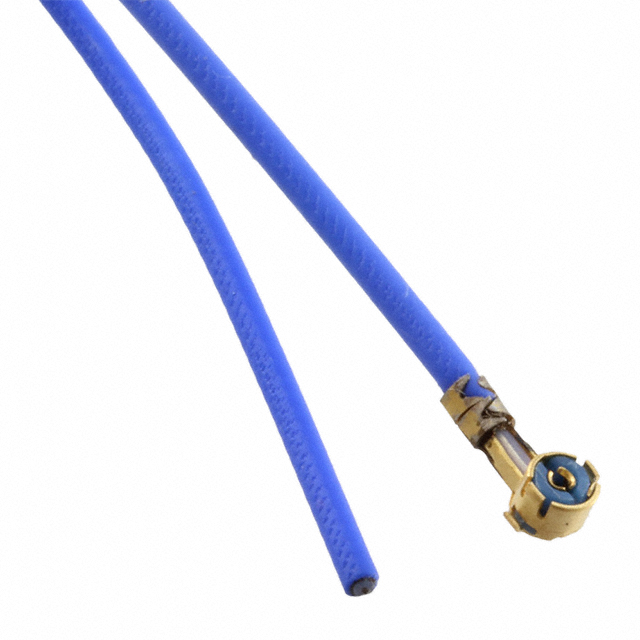

Cable Assembly Coaxial SSMT to Cable 7.874" (200.00mm)
