SKN.M04.GLLG

Active

LEMO

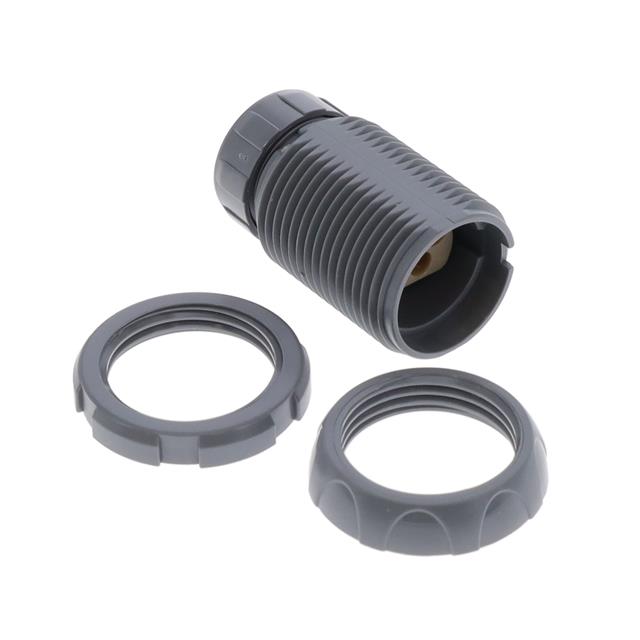

CONN RCPT FMALE 4P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SKN.M04.GLLG

Active

LEMO

CONN RCPT FMALE 4P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 34.02
		10	$ 26.27
		25	$ 23.81
		50	$ 22.15
		100	$ 20.65
		250	$ 18.88
		500	$ 17.68

Description

General part information

SKN.M0 Series

4 Position Circular Connector Receptacle, Female Sockets Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SKN.M04.GLLG	SKN.M0 Series

Applications	Medical, Industrial, Automotive, Testing Equipment & Measurement	Medical, Industrial, Automotive, Testing Equipment & Measurement
Color	Gray	White, Gray, Blue
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Current Rating (Amps)	11.5 A	5 - 11.5 A
Fastening Type	Push-Pull	Push-Pull
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Mounting Feature	Front and Rear Side Nut	Front and Rear Side Nut
Mounting Type	-	Through Hole, Right Angle, Panel Mount
Number of Positions	4	4 - 8
Operating Temperature [Max]	170 °C	170 °C
Operating Temperature [Min]	-50 °C	-50 °C
Orientation	N	N
Primary Material	Plastic	Plastic
Shell Material	Sulfone	Sulfone
Shell Size - Insert	M04	M04, M06, M08
Shielding	Unshielded	Unshielded
Termination	-	Solder

SKN.M0 Series

CONN RCPT FMALE 4P GOLD SLDR CUP

Part	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Applications	Current Rating (Amps)	Primary Material	Insert Material	Contact Finish - Mating	Shell Size - Insert	Orientation	Number of Positions	Mounting Feature	Ingress Protection	Shell Material	Color	Shielding	Connector Type	Termination	Mounting Type
LEMO SKN.M04.BLLB	-50 °C	170 °C	Push-Pull	Automotive, Industrial, Medical, Testing Equipment & Measurement	11.5 A	Plastic	Polyetheretherketone (PEEK)	Gold	M04	N	4	Front and Rear Side Nut	IP50	Sulfone	White	Unshielded	Receptacle, Female Sockets
LEMO SKN.M06.GLLG	-50 °C	170 °C	Push-Pull	Automotive, Industrial, Medical, Testing Equipment & Measurement	8.5 A	Plastic	Polyetheretherketone (PEEK)	Gold	M06	N	6	Front and Rear Side Nut	IP50	Sulfone	Gray	Unshielded	Receptacle, Female Sockets
LEMO SKN.M04.GLLG	-50 °C	170 °C	Push-Pull	Automotive, Industrial, Medical, Testing Equipment & Measurement	11.5 A	Plastic	Polyetheretherketone (PEEK)	Gold	M04	N	4	Front and Rear Side Nut	IP50	Sulfone	Gray	Unshielded	Receptacle, Female Sockets
LEMO SKN.M08.GLVG	-50 °C	170 °C	Push-Pull	Automotive, Industrial, Medical, Testing Equipment & Measurement	5 A	Plastic	Polyetheretherketone (PEEK)	Gold	M08	N	8	Front and Rear Side Nut	IP50	Sulfone	Gray	Unshielded	Receptacle, Female Sockets	Solder	Panel Mount, Right Angle, Through Hole
LEMO SKN.M08.GLLG	-50 °C	170 °C	Push-Pull	Automotive, Industrial, Medical, Testing Equipment & Measurement	5 A	Plastic	Polyetheretherketone (PEEK)	Gold	M08	N	8	Front and Rear Side Nut	IP50	Sulfone	Gray	Unshielded	Receptacle, Female Sockets
LEMO SKN.M08.GLLA	-50 °C	170 °C	Push-Pull	Automotive, Industrial, Medical, Testing Equipment & Measurement	5 A	Plastic	Polyetheretherketone (PEEK)	Gold	M08	N	8	Front and Rear Side Nut	IP50	Sulfone	Blue, Gray	Unshielded	Receptacle, Female Sockets
