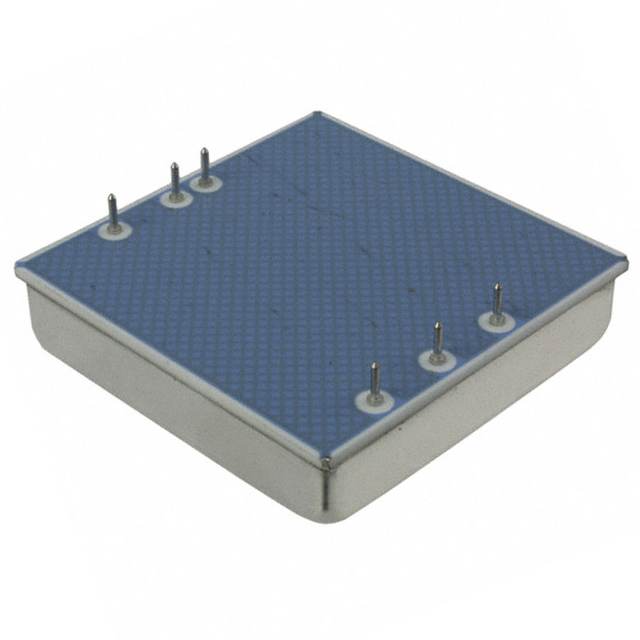

UHR-30184
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 5V 20W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UHR-30184
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 5V 20W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UHR-30184 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 4 A |
| Efficiency | 80 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 203 °F |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 20 W |
| Size / Dimension [x] | 52.3 mm |
| Size / Dimension [x] | 2.06 in |
| Size / Dimension [y] | 52.3 mm |
| Size / Dimension [y] | 2.06 in |
| Size / Dimension [z] | 0.46 in |
| Size / Dimension [z] | 11.7 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 9 V |
| Voltage - Isolation | 1000 V |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
UHR-301 Series
DC DC CONVERTER 5V 20W
| Part | Voltage - Isolation | Efficiency | Mounting Type | Voltage - Input (Min) [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Current - Output (Max) [Max] | Type | Applications | Voltage - Output 1 | Number of Outputs | Voltage - Input (Max) [Max] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. UHR-30184 | 1000 V | 80 % | Through Hole | 9 V | -40 °C | 203 °F | 4 A | Isolated Module | ITE (Commercial) | 5 V | 1 | 36 V | 52.3 mm | 0.46 in | 52.3 mm | 11.7 mm | 2.06 in | 2.06 in | 20 W |
Description
General part information
UHR-301 Series
Isolated Module DC DC Converter 1 Output 5V 4A 9V - 36V Input
