DocumentsDatasheet 10120 Series Product Information Sheet

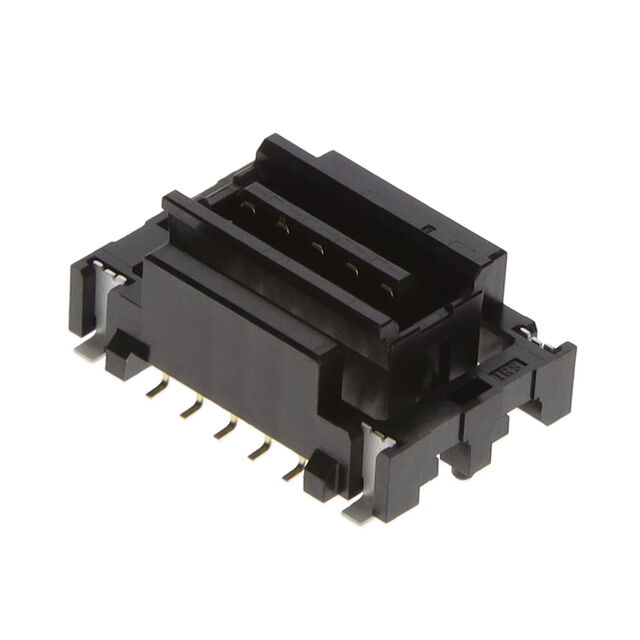

IMSA-10120B-10Z02-GFN4

Active

IRISO USA Inc.

CONN HEADER VERT B-TO-B FLOATING

Deep-Dive with AI

DocumentsDatasheet 10120 Series Product Information Sheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	IMSA-10120B-10Z02-GFN4	IMSA-1012 Series

Connector Type	-	Socket, Center Strip Contacts
Contact Finish	Gold	Gold
Contact Finish Thickness	4 Áin	4 Áin
Contact Finish Thickness	0.1 Ám	0.1 Ám
Features	Solder Retention, Board Guide	Solder Retention, Board Guide
Height Above Board	-	8.35 - 16.35 mm
Height Above Board	-	0.329 - 0.644 in
Height Above Board [z]	7.95 mm	7.95 - 12.35 mm
Height Above Board [z]	0.313 in	0.313 - 0.486 "
Mounting Type	Surface Mount	Surface Mount
Number of Positions	10	6 - 30
Number of Rows	2	2
Pitch [x]	0.079 in	0.016 - 0.079 in
Pitch [x]	2 mm	0.4 - 2 mm

IMSA-1012 Series

CONN HEADER VERT B-TO-B FLOATING

Part	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Pitch [x]	Pitch [x]	Number of Rows	Contact Finish	Features	Height Above Board	Height Above Board	Connector Type	Height Above Board [z]	Height Above Board [z]
IRISO USA Inc. IMSA-10120B-20Z04-GFN4	20	4 Áin	0.1 Ám	Surface Mount	0.079 in	2 mm	2	Gold	Board Guide, Solder Retention	8.95 mm	0.352 in
IRISO USA Inc. IMSA-10120S-06Z10-GFN4	6			Surface Mount	0.079 in	2 mm	2		Board Guide, Solder Retention	8.35 mm	0.329 in	Socket, Center Strip Contacts
IRISO USA Inc. IMSA-10120B-30Z04-GFN4	30	4 Áin	0.1 Ám	Surface Mount	0.079 in	2 mm	2	Gold	Board Guide, Solder Retention	8.95 mm	0.352 in
IRISO USA Inc. IMSA-10120B-10Z04-GFN4	10	4 Áin	0.1 Ám	Surface Mount	0.079 in	2 mm	2	Gold	Board Guide, Solder Retention	8.95 mm	0.352 in
IRISO USA Inc. IMSA-10126B-30H-GFN4	30			Surface Mount	0.016 in	0.4 mm	2	Gold	Solder Retention
IRISO USA Inc. IMSA-10120S-06Z18-GFN4	6	4 Áin	0.1 Ám	Surface Mount	0.079 in	2 mm	2	Gold	Board Guide, Solder Retention	16.35 mm	0.644 in	Socket, Center Strip Contacts
IRISO USA Inc. IMSA-10120S-20Z14-GFN4	20	4 Áin	0.1 Ám	Surface Mount	0.079 in	2 mm	2	Gold	Board Guide, Solder Retention			Socket, Center Strip Contacts	12.35 mm	0.486 "
IRISO USA Inc. IMSA-10120B-30Y913	30	4 Áin	0.1 Ám	Surface Mount	0.079 in	2 mm	2	Gold	Board Guide, Solder Retention	8.95 mm	0.352 in
IRISO USA Inc. IMSA-10120B-10Z02-GFN4	10	4 Áin	0.1 Ám	Surface Mount	0.079 in	2 mm	2	Gold	Board Guide, Solder Retention				7.95 mm	0.313 in
IRISO USA Inc. IMSA-10120B-06Y913	6	4 Áin	0.1 Ám	Surface Mount	0.079 in	2 mm	2	Gold	Board Guide, Solder Retention	8.95 mm	0.352 in
