T38020-08-0
ActiveCurtis Industries

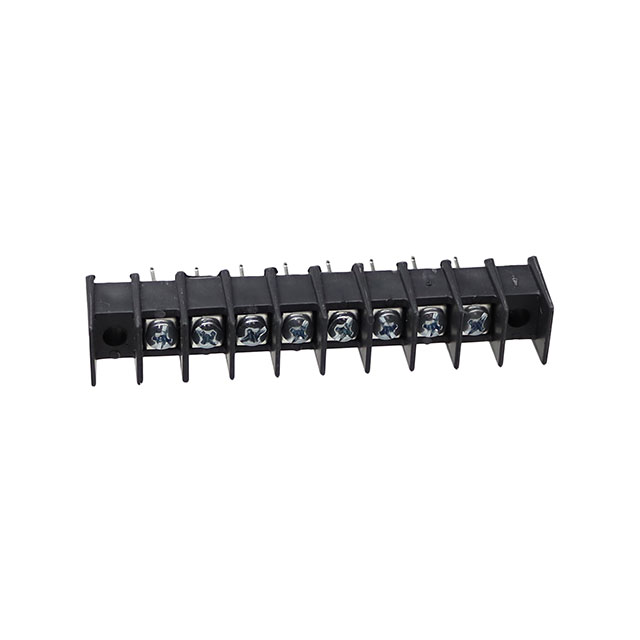

CONN BARRIER STRIP 8CIRC 0.375"
Deep-Dive with AI
Search across all available documentation for this part.
T38020-08-0
ActiveCurtis Industries
CONN BARRIER STRIP 8CIRC 0.375"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T38020-08-0 | T38020 Series |
|---|---|---|
| - | - | |
| Barrier Type | 2 Wall (Dual) | 2 Wall (Dual) |
| Bottom Termination | Solder Turret | Solder Turret |
| Current Rating (Amps) | 20 A | 20 A |
| Features | Flange | Flange |
| Material - Insulation | Polypropylene (PP) | Polypropylene (PP) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Panel, Chassis | Panel, Chassis |
| Number of Circuits | - | 1 - 26 |
| Number of Circuits [custom] | 8 | 8 |
| Number of Rows | 1 | 1 |
| Number of Wire Entries | 8 | 5 - 26 |
| Number of Wire Entries | - | 1 - 23 |
| Operating Temperature | 105 C | 105 C |
| Pitch [x] | 9.53 mm | 9.53 mm |
| Pitch [x] | 0.375 in | 0.375 in |
| Terminal Block Type | Barrier Block | Barrier Block |
| Terminal Screw Finish | Nickel | Nickel |
| Terminal Screw Material | Steel | Steel |
| Top Termination | Screws | Screws |
| Voltage Rating | 300 VDC | 300 VDC |
| Wire Gauge [Max] | 22 AWG | 22 AWG |
| Wire Gauge [Min] | 12 AWG | 12 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 5.30 | |
| 50 | $ 4.81 | |||
| 125 | $ 4.62 | |||
| 250 | $ 4.08 | |||
| 625 | $ 3.80 | |||
| 1250 | $ 3.53 | |||
| 2500 | $ 3.40 | |||
T38020 Series
CONN BARRIER STRIP 8CIRC 0.375"
| Part | Top Termination | Barrier Type | Pitch [x] | Pitch [x] | Material - Insulation | Voltage Rating | Current Rating (Amps) | Material Flammability Rating | Terminal Screw Finish | Bottom Termination | Mounting Type | Features | Terminal Block Type | Number of Wire Entries | Operating Temperature | Number of Circuits [custom] | Number of Rows | Terminal Screw Material | Wire Gauge [Min] | Wire Gauge [Max] | Number of Circuits | Number of Wire Entries [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Curtis Industries T38020-08-0 | Screws | 2 Wall (Dual) | 9.53 mm | 0.375 in | Polypropylene (PP) | 300 VDC | 20 A | UL94 V-0 | Nickel | Solder Turret | Chassis, Panel | Flange | Barrier Block | 8 | 105 C | 8 | 1 | Steel | 12 AWG | 22 AWG | ||
Curtis Industries T38020-05-0 | ||||||||||||||||||||||
Curtis Industries T38020-25-0 | Screws | 2 Wall (Dual) | 9.53 mm | 0.375 in | Polypropylene (PP) | 300 VDC | 20 A | UL94 V-0 | Nickel | Solder Turret | Chassis, Panel | Flange | Barrier Block | 25 | 105 C | 1 | Steel | 12 AWG | 22 AWG | 25 | ||
Curtis Industries T38020-26-0 | Screws | 2 Wall (Dual) | 9.53 mm | 0.375 in | Polypropylene (PP) | 300 VDC | 20 A | UL94 V-0 | Nickel | Solder Turret | Chassis, Panel | Flange | Barrier Block | 26 | 105 C | 1 | Steel | 12 AWG | 22 AWG | 26 | ||
Curtis Industries T38020-21-0 | Screws | 2 Wall (Dual) | 9.53 mm | 0.375 in | Polypropylene (PP) | 300 VDC | 20 A | UL94 V-0 | Nickel | Solder Turret | Chassis, Panel | Flange | Barrier Block | 21 | 105 C | 1 | Steel | 12 AWG | 22 AWG | 21 | ||
Curtis Industries T38020-13-0 | Screws | 2 Wall (Dual) | 9.53 mm | 0.375 in | Polypropylene (PP) | 300 VDC | 20 A | UL94 V-0 | Nickel | Solder Turret | Chassis, Panel | Flange | Barrier Block | 13 | 105 C | 1 | Steel | 12 AWG | 22 AWG | 13 | ||
Curtis Industries T38020-24-0 | Screws | 2 Wall (Dual) | 9.53 mm | 0.375 in | Polypropylene (PP) | 300 VDC | 20 A | UL94 V-0 | Nickel | Solder Turret | Chassis, Panel | Flange | Barrier Block | 105 C | 1 | Steel | 12 AWG | 22 AWG | 24 | |||
Curtis Industries T38020-23-0 | Screws | 2 Wall (Dual) | 9.53 mm | 0.375 in | Polypropylene (PP) | 300 VDC | 20 A | UL94 V-0 | Nickel | Solder Turret | Chassis, Panel | Flange | Barrier Block | 105 C | 1 | Steel | 12 AWG | 22 AWG | 23 | 23 | ||
Curtis Industries T38020-11-0 | Screws | 2 Wall (Dual) | 9.53 mm | 0.375 in | Polypropylene (PP) | 300 VDC | 20 A | UL94 V-0 | Nickel | Solder Turret | Chassis, Panel | Flange | Barrier Block | 11 | 105 C | 1 | Steel | 12 AWG | 22 AWG | 11 | ||
Curtis Industries T38020-19-0 | Screws | 2 Wall (Dual) | 9.53 mm | 0.375 in | Polypropylene (PP) | 300 VDC | 20 A | UL94 V-0 | Nickel | Solder Turret | Chassis, Panel | Flange | Barrier Block | 19 | 105 C | 1 | Steel | 12 AWG | 22 AWG | 19 |
Description
General part information
T38020 Series
8 Circuit 0.375" (9.53mm) Barrier Block Connector Screws
Documents
Technical documentation and resources
No documents available
