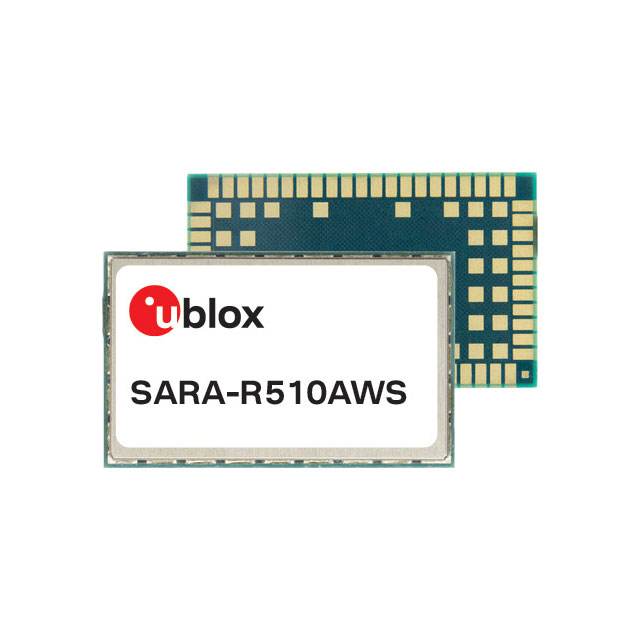

SARA-R510AWS-01B

Active

u-blox

RF TXRX MODULE CELL SMD

Search across all available documentation for this part.

Active

u-blox

RF TXRX MODULE CELL SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SARA-R510AWS-01B	SARA-R510 Series

Antenna Type	Antenna Not Included	Antenna Not Included
Current - Receiving	-	195 mA
Current - Receiving	-	95 mA
Current - Transmitting	-	395 mA
Current - Transmitting	-	95 mA
Data Rate	-	1.2 Mbps
Frequency	-	1.7 - 2100 MHz
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	96-SMD Module	96-SMD Module
Power - Output	23 dBmW	23 dBmW
Protocol	5G, LTE	5G, LTE, GNSS, Beidou, Galileo, GLONASS, GPS
RF Family/Standard	Cellular	Cellular, Navigation
Sensitivity	-	-167 dBm
Serial Interfaces	USB, GPIO, I2C, UART	USB, GPIO, I2C, UART
Utilized IC / Part	-	UBX-R5
Voltage - Supply [Max]	4.5 V	4.4 - 4.5 V
Voltage - Supply [Min]	3 V	3 - 3.3 V

RF TXRX MODULE CELL SMD

Part	RF Family/Standard	Serial Interfaces	Operating Temperature [Max]	Operating Temperature [Min]	Antenna Type	Package / Case	Protocol	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Power - Output	Utilized IC / Part	Sensitivity	Current - Transmitting [Max]	Current - Transmitting [Min]	Frequency	Data Rate	Current - Receiving [Max]	Current - Receiving [Min]
u-blox SARA-R510AWS-01B	Cellular	GPIO, I2C, UART, USB	85 °C	-40 °C	Antenna Not Included	96-SMD Module	5G, LTE	4.5 V	3 V	Surface Mount	23 dBmW
u-blox SARA-R510S-01B	Cellular, Navigation		85 °C	-40 °C	Antenna Not Included	96-SMD Module	5G, Beidou, Galileo, GLONASS, GNSS, GPS, LTE	4.4 V	3.3 V	Surface Mount	23 dBmW	UBX-R5	-167 dBm	395 mA	95 mA	1.7 GHz, 600 MHz, 700 MHz, 750 MHz, 800 MHz, 850 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz	1.2 Mbps	195 mA	95 mA
u-blox SARA-R510M8S-01B	Cellular, Navigation		85 °C	-40 °C	Antenna Not Included	96-SMD Module	5G, Beidou, Galileo, GLONASS, GNSS, GPS, LTE	4.4 V	3.3 V	Surface Mount	23 dBmW	UBX-R5	-167 dBm	395 mA	95 mA	1.7 GHz, 600 MHz, 700 MHz, 750 MHz, 800 MHz, 850 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz	1.2 Mbps	195 mA	95 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cellular 5G, LTE Transceiver Module Antenna Not Included Surface Mount
