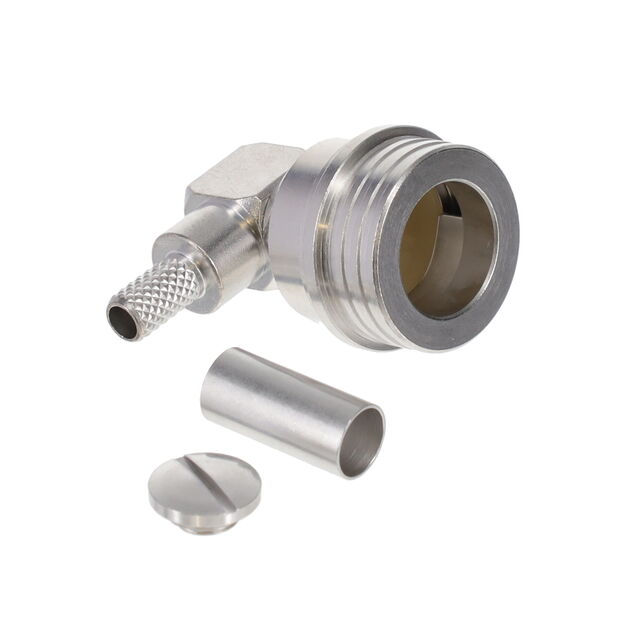

R164176000W

Active

Radiall USA, Inc.

QN / RIGHT ANGLE PLUG CRIMP TYPE

Search across all available documentation for this part.

Active

Radiall USA, Inc.

QN / RIGHT ANGLE PLUG CRIMP TYPE

Technical Specifications

Parameters and characteristics for this part

Specification	R164176000W

Body Finish	White Bronze
Body Material	Brass
Cable Group	RG-142, 400, 223
Center Contact Material	Brass
Center Contact Plating	Silver
Connector Style	QN
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Silver
Impedance	50 Ohms
Ingress Protection	IP68 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Crimp
Voltage Rating	850 V

Part	Body Finish	Mounting Type	Ingress Protection	Impedance	Cable Group	Cable Group	Body Material	Number of Ports	Shield Termination	Connector Style	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Material	Fastening Type	Housing Color	Connector Type	Dielectric Material	Contact Termination	Frequency - Max [Max]	Center Contact Plating
Radiall USA, Inc. R164175000	White Bronze	Free Hanging (In-Line) Right Angle	IP68 - Dust Tight Waterproof	50 Ohms	141	RG-58	Brass	1	Crimp	QN	500 V	-55 °C	125 °C	Brass	Snap-On	Silver	Male Pin Plug	Polytetrafluoroethylene (PTFE)	Crimp	6000 MHz	Silver
Radiall USA, Inc. R164176000	White Bronze	Free Hanging (In-Line) Right Angle	IP68 - Dust Tight Waterproof	50 Ohms		223 400 RG-142	Brass	1	Crimp	QN	850 V	-55 °C	125 °C	Brass	Snap-On	Silver	Male Pin Plug	Polytetrafluoroethylene (PTFE)	Crimp	6000 MHz	Silver
Radiall USA, Inc. R164176000W	White Bronze	Free Hanging (In-Line) Right Angle	IP68 - Dust Tight Waterproof	50 Ohms		223 400 RG-142	Brass	1	Crimp	QN	850 V	-55 °C	125 °C	Brass	Snap-On	Silver	Male Pin Plug	Polytetrafluoroethylene (PTFE)	Crimp	6000 MHz	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

QN Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Crimp
