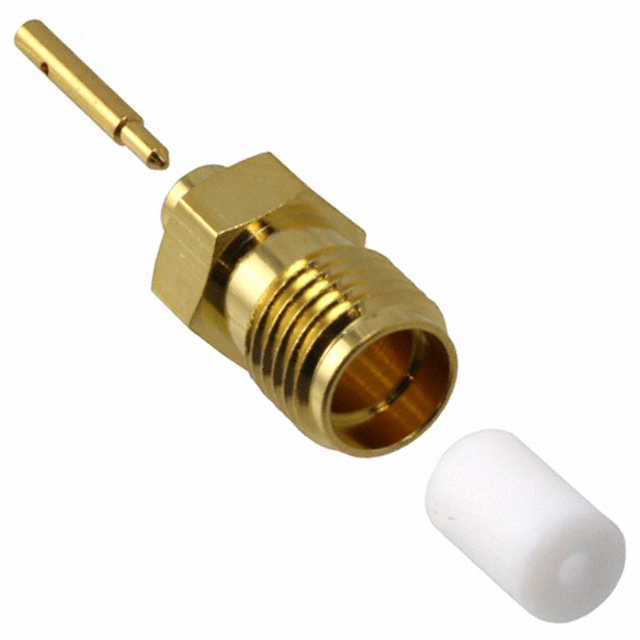

132103RP

Active

Amphenol RF

CONN RPSMA JACK STR 50OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol RF

CONN RPSMA JACK STR 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	132103RP

Body Finish	Gold
Body Material	Brass
Cable Group	Semi Rigid, RG-405
Cable Group [Max]	0.086 in
Cable Group [Min]	0.085 in
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	RP-SMA
Connector Type	Male Pin, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Includes	1 pcs, 1 pcs, 2 pcs
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	375 V

Part	Mounting Type	Includes	Center Contact Plating	Connector Type	Housing Color	Cable Group	Cable Group [Min]	Cable Group [Max]	Dielectric Material	Frequency - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Mating Cycles	Number of Ports	Center Contact Material	Shield Termination	Impedance	Body Material	Contact Termination	Body Finish	Connector Style
Amphenol RF 132103RP	Free Hanging (In-Line)	1 pcs 1 pcs 2 pcs	Gold	Jack Male Pin	Gold	RG-405 Semi Rigid	0.085 in	0.086 in	Polytetrafluoroethylene (PTFE)	18 GHz	-65 ░C	165 °C	375 V	500	1	Brass	Solder	50 Ohms	Brass	Solder	Gold	RP-SMA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RP-SMA Connector Jack, Male Pin 50 Ohms Free Hanging (In-Line) Solder
