A3MBAU
ActiveSwitchcraft Inc.

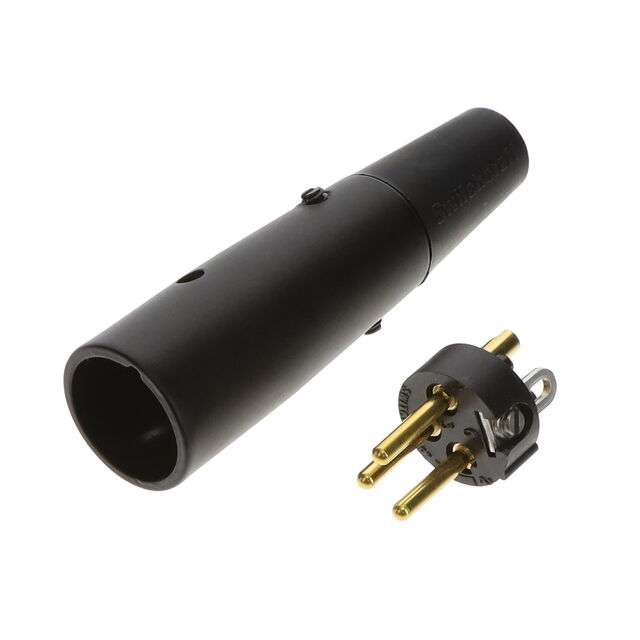

CONN RCPT MALE XLR 3P SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A3MBAU
ActiveSwitchcraft Inc.
CONN RCPT MALE XLR 3P SOLDER CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A3MBAU | A3M Series |
|---|---|---|
| Applications | Audio, Instrumentation | Audio, Instrumentation |
| Backshell Material, Plating | Zinc, Black Finish | Zinc, Nickel, Black Finish |
| Cable Opening | - | 0.105 - 0.328 in |
| Cable Opening | - | 2.67 - 8.33 mm |
| Cable Opening [Max] [diameter] | 0.3 in | 0.3 in |
| Cable Opening [Max] [diameter] | 7.62 mm | 7.62 mm |
| Cable Opening [Min] [diameter] | 5.33 mm | 5.33 mm |
| Cable Opening [Min] [diameter] | 0.21 in | 0.21 in |
| Color | Black | Silver, Black |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins |
| Contact Finish - Mating | Gold | Silver, Gold |
| Contact Material | Brass | Brass |
| Current Rating (Amps) | 15 A | 15 A |
| Fastening Type | Latch Lock | Latch Lock |
| Features | Backshell, Strain Relief, Ground, Cable Clamp | Backshell, Strain Relief, Ground, Cable Clamp |
| Insert Material | Polyester | Polyester |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Orientation | Keyed | Keyed |
| Primary Material | Metal | Metal |
| Shell Finish | Black | Nickel, Black |
| Shell Material | Zinc | Zinc |
| Shell Size - Insert | XLR | XLR |
| Voltage Rating | 125 VAC | 125 VAC |
A3M Series
CONN RCPT MALE XLR 3P SOLDER CUP
| Part | Contact Material | Backshell Material, Plating | Applications | Primary Material | Connector Type | Shell Size - Insert | Fastening Type | Shell Finish | Mounting Type | Insert Material | Features | Shell Material | Orientation | Current Rating (Amps) | Voltage Rating | Color | Cable Opening [custom] | Cable Opening [custom] | Contact Finish - Mating | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. A3ML | Brass | Nickel, Zinc | Audio, Instrumentation | Metal | Male Pins, Receptacle | XLR | Latch Lock | Nickel | Free Hanging (In-Line) | Polyester | Backshell, Cable Clamp, Ground, Strain Relief | Zinc | Keyed | 15 A | 125 VAC | Silver | 0.3 in, 0.328 in | 7.62 mm, 8.33 mm | Silver | ||||
Switchcraft Inc. A3MB | Brass | Black Finish, Zinc | Audio, Instrumentation | Metal | Male Pins, Receptacle | XLR | Latch Lock | Black | Free Hanging (In-Line) | Polyester | Backshell, Cable Clamp, Ground, Strain Relief | Zinc | Keyed | 15 A | 125 VAC | Black | Silver | 5.33 mm | 0.3 in | 0.21 in | 7.62 mm | ||
Switchcraft Inc. A3MS | Brass | Nickel, Zinc | Audio, Instrumentation | Metal | Male Pins, Receptacle | XLR | Latch Lock | Nickel | Free Hanging (In-Line) | Polyester | Backshell, Cable Clamp, Ground, Strain Relief | Zinc | Keyed | 15 A | 125 VAC | Silver | 0.105 in, 0.205 in | 2.67 mm, 5.21 mm | Silver | ||||
Switchcraft Inc. A3MBAU | Brass | Black Finish, Zinc | Audio, Instrumentation | Metal | Male Pins, Receptacle | XLR | Latch Lock | Black | Free Hanging (In-Line) | Polyester | Backshell, Cable Clamp, Ground, Strain Relief | Zinc | Keyed | 15 A | 125 VAC | Black | Gold | 5.33 mm | 0.3 in | 0.21 in | 7.62 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 13.33 | |
| 10 | $ 11.82 | |||
| 25 | $ 11.36 | |||
| 50 | $ 10.91 | |||
| 100 | $ 10.30 | |||
| 300 | $ 9.39 | |||
| 500 | $ 8.79 | |||
| 1000 | $ 8.06 | |||
Description
General part information
A3M Series
3 Position Circular Connector Receptacle, Male Pins Solder Cup
