A3MS

Active

Switchcraft Inc.

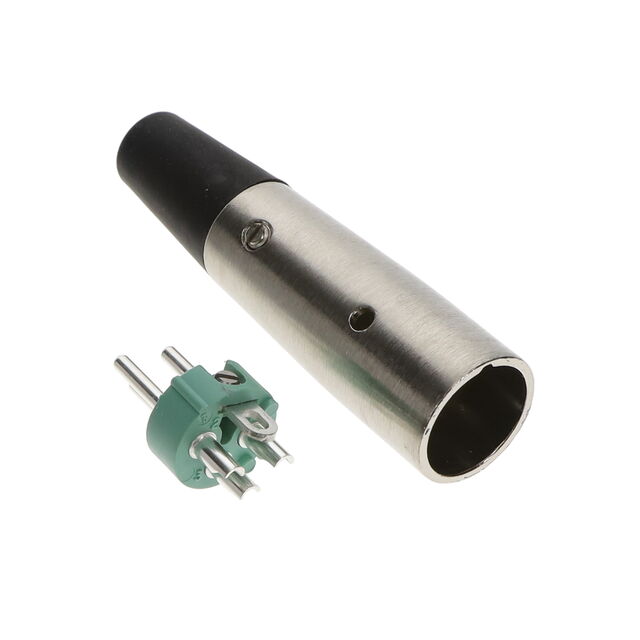

CONN RCPT MALE XLR 3P SOLDER CUP

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCPT MALE XLR 3P SOLDER CUP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Receptacle, Male Pins Solder Cup

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	A3MS	A3M Series

Applications	Audio, Instrumentation	Audio, Instrumentation
Backshell Material, Plating	Zinc, Nickel	Zinc, Nickel, Black Finish
Cable Opening	-	5.33 mm
Cable Opening	-	0.3 in
Cable Opening	-	0.21 in
Cable Opening	-	7.62 mm
Cable Opening [custom]	5.21 mm, 2.67 mm	2.67 - 8.33 mm
Cable Opening [custom]	0.205 in, 0.105 in	0.105 - 0.328 in
Color	Silver	Silver, Black
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Silver	Silver, Gold
Contact Material	Brass	Brass
Current Rating (Amps)	15 A	15 A
Fastening Type	Latch Lock	Latch Lock
Features	Backshell, Strain Relief, Ground, Cable Clamp	Backshell, Strain Relief, Ground, Cable Clamp
Insert Material	Polyester	Polyester
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Nickel	Nickel, Black
Shell Material	Zinc	Zinc
Shell Size - Insert	XLR	XLR
Voltage Rating	125 VAC	125 VAC

CONN RCPT MALE XLR 3P SOLDER CUP

Part	Contact Material	Backshell Material, Plating	Applications	Primary Material	Connector Type	Shell Size - Insert	Fastening Type	Shell Finish	Mounting Type	Insert Material	Features	Shell Material	Orientation	Current Rating (Amps)	Voltage Rating	Color	Cable Opening [custom]	Cable Opening [custom]	Contact Finish - Mating	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]
Switchcraft Inc. A3ML	Brass	Nickel, Zinc	Audio, Instrumentation	Metal	Male Pins, Receptacle	XLR	Latch Lock	Nickel	Free Hanging (In-Line)	Polyester	Backshell, Cable Clamp, Ground, Strain Relief	Zinc	Keyed	15 A	125 VAC	Silver	0.3 in, 0.328 in	7.62 mm, 8.33 mm	Silver
Switchcraft Inc. A3MB	Brass	Black Finish, Zinc	Audio, Instrumentation	Metal	Male Pins, Receptacle	XLR	Latch Lock	Black	Free Hanging (In-Line)	Polyester	Backshell, Cable Clamp, Ground, Strain Relief	Zinc	Keyed	15 A	125 VAC	Black			Silver	5.33 mm	0.3 in	0.21 in	7.62 mm
Switchcraft Inc. A3MS	Brass	Nickel, Zinc	Audio, Instrumentation	Metal	Male Pins, Receptacle	XLR	Latch Lock	Nickel	Free Hanging (In-Line)	Polyester	Backshell, Cable Clamp, Ground, Strain Relief	Zinc	Keyed	15 A	125 VAC	Silver	0.105 in, 0.205 in	2.67 mm, 5.21 mm	Silver
Switchcraft Inc. A3MBAU	Brass	Black Finish, Zinc	Audio, Instrumentation	Metal	Male Pins, Receptacle	XLR	Latch Lock	Black	Free Hanging (In-Line)	Polyester	Backshell, Cable Clamp, Ground, Strain Relief	Zinc	Keyed	15 A	125 VAC	Black			Gold	5.33 mm	0.3 in	0.21 in	7.62 mm
