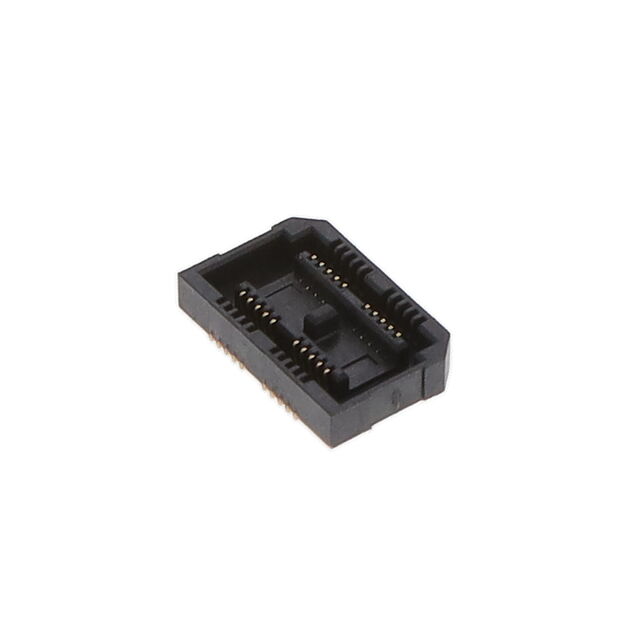

LSH-010-01-G-D-A-TR

Active

Samtec Inc.

.5MM DOUBLE ROW SOCKET ASSEMBLY

Search across all available documentation for this part.

Active

Samtec Inc.

.5MM DOUBLE ROW SOCKET ASSEMBLY

Technical Specifications

Parameters and characteristics for this part

Specification	LSH-010-01-G-D-A-TR

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Board Guide
Height Above Board	1.9 mm
Height Above Board	0.075 "
Mated Stacking Heights	2.31 mm
Mounting Type	Surface Mount
Number of Positions	20
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Number of Rows	Features	Contact Finish	Mounting Type	Connector Type	Mated Stacking Heights	Number of Positions	Height Above Board	Height Above Board	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]
Samtec Inc. LSH-010-01-G-D-A-K-TR	2	Board Guide Pick and Place	Gold	Surface Mount	Center Strip Contacts Receptacle	2.31 mm	20	1.9 mm	0.075 "	10 Áin	0.25 Ám	0.5 mm	0.02 in
Samtec Inc. LSH-010-01-H-D-A-TR	2	Board Guide	Gold	Surface Mount	Center Strip Contacts Receptacle	2.31 mm	20	1.9 mm	0.075 "	30 Áin	0.76 Ám	0.5 mm	0.02 in
Samtec Inc. LSH-010-01-G-D-A-TR	2	Board Guide	Gold	Surface Mount	Center Strip Contacts Receptacle	2.31 mm	20	1.9 mm	0.075 "	10 Áin	0.25 Ám	0.5 mm	0.02 in
