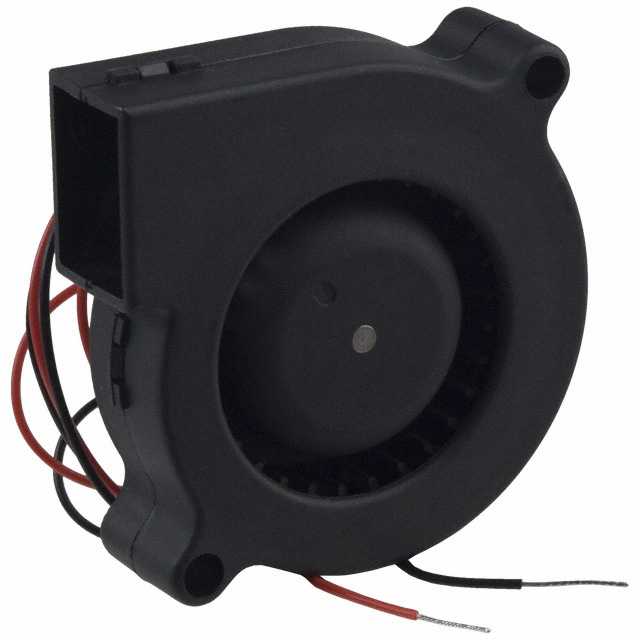

BFB0524HH

Active

Delta Electronics

FAN BLOWER 51.3X15MM 24VDC WIRE

Search across all available documentation for this part.

Active

Delta Electronics

FAN BLOWER 51.3X15MM 24VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Part	Voltage Range [Max]	Voltage Range [Min]	Noise	Static Pressure	Static Pressure	Approval Agency	Voltage - Rated	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Current Rating (Amps)	Power (Watts)	Width [x]	Lifetime @ Temp.	RPM	Air Flow	Air Flow	Weight	Weight	Material - Blade	Bearing Type	Material - Frame	Fan Type	Termination	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Features	Air Flow
Delta Electronics BFB0524HH	27.6 VDC	14 VDC	45 dB(A)	0.866 in H2O	215.7 Pa	CE CSA UL VDE	24 VDC	51 mm	Square/Rounded	51.3 mm	110 mA	2.64 W	15 mm	50000 Hrs	6500 RPM	0.129 m³/min	4.6 CFM	28.12 g	0.062 lb	Plastic	Ball	Plastic	Blower	2 Wire Leads	70 °C	70 °C	-10 °C	-10 °C
Delta Electronics BFB0524HH-F00	27.6 VDC	14 VDC	45 dB(A)	0.866 in H2O	215.7 Pa	CE CSA UL VDE	24 VDC	51 mm	Square/Rounded	51.3 mm	110 mA	2.64 W	15 mm	50000 Hrs	6500 RPM	0.129 m³/min	4.6 CFM	28.12 g	0.062 lb	Plastic	Ball	Plastic	Blower	3 Wire Leads	70 °C	70 °C	-10 °C	-10 °C	Speed Sensor (Tach)
Delta Electronics BFB0524H-R00	27.6 VDC	14 VDC	38 dB(A)			CE CSA UL VDE	24 VDC	51 mm	Square/Rounded	51.3 mm	0.09 A	2.16 W	15 mm	50000 Hrs	5500 RPM	3.9 CFM		28.12 g	0.062 lb	Plastic	Ball	Plastic	Blower	3 Wire Leads	70 °C	70 °C	-10 °C	-10 °C	Locked Rotor Sensor	0.109 m³/min

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Blower 24VDC Square/Rounded - 51.3mm L x 51mm H Ball 4.6 CFM (0.129m³/min) 2 Wire Leads
